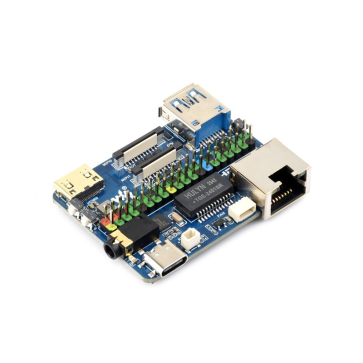

CM5-NANO-B Mini Expansion Board For Raspberry Pi Compute Module 5
- Compact and fully functional base board designed for Raspberry Pi Compute Module 5, featuring multiple peripheral interfaces for versatile applications.
- Equipped with Gigabit Ethernet, USB 3.2, mini HDMI for 4K output, and dual MIPI interfaces, ideal for evaluating or integrating CM5 into end products.
Artikelnummer:
13116
Verfügbarkeit: Zur Zeit nicht an Lager
CHF 19.90
Zubehör
Artikelbeschrieb
Details
Nano Base Board (B) for CM5
Suitable For Evaluating The Raspberry Pi CM5 Or Being Integrated Into End Products
Base Board for Compute Module 5 Lite / eMMC
Same Size As The CM5
Compact size and fully functional, With Multiple Peripheral Interfaces, Suitable for Narrow Application Environments
Note: the CM5 is NOT included. Please buy it separately.
Specifications
| CM5 socket | Suitable for all variants of Compute Module 5 |
|---|---|
| Networking | Gigabit Ethernet RJ45 connector |
| Connector | Raspberry Pi 40PIN GPIO interface × 1 |
| USB | USB 3.2 Gen1 Type A port × 1 |
| MIPI | MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector) |
| Video | Mini HDMI port × 1, supports 4K output |
| Audio | USB audio 3.5mm jack |
| Storage | TF card socket for Compute Module 5 Lite (without eMMC) variants |
| Power input | DC 5V 5A |
| PCIe | 16PIN PCIe connector (PCIe Gen2/3 x1) |
| Dimensions | 55 × 41mm |
What's On Board
- CM5 socket
Suitable for all variants of Compute Module 5 - PCIe interface
16PIN PCIe connector, for connecting sorts of PI5 PCIe adapter boards - TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY) - Other function pins
Supports for extended functions - Mini HDMI port
Supports 4K output - BOOT button
Press before powering on and release after powering on to enter the burning mode - PSW button
power button - 3.5mm jack
Audio output
- Power supply / Programming
5V power supply, or used for eMMC burning - 2PIN JST-SH RTC battery header
- FAN header
4PIN JST-SH PWM fan header for connecting a cooling fan - RJ45 Gigabit Ethernet port
for network access - Dual-color LED indicator
Red light: Raspberry Pi power indicator
Green light: Raspberry Pi working status indicator - User button
connected to GPIO21 - USB port
USB 3.2 Gen1 high speed interface, for connecting sorts of USB devices - Dual MIPI interfaces
for connecting to DSI displays or CSI cameras - 40PIN GPIO interface
suitable for connecting to various HAT modules
Package Content
Weight: 0.02 kg
- CM5-NANO-B with pre-soldered headers x1
