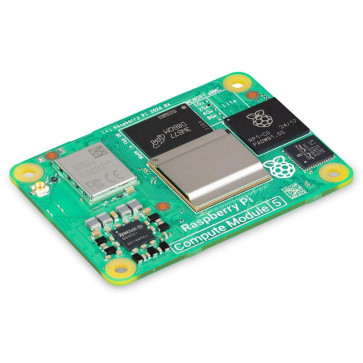

Raspberry Pi Compute Module 5, wireless,16GB RAM, 16GB eMMC

The Raspberry Pi Compute Module 5 (Wireless, 16GB RAM, 16GB eMMC) is a high-performance system-on-module (SoM) that brings the power and flexibility of Raspberry Pi 5 to embedded, industrial, and custom product designs.

Powered by a quad-core 64-bit Arm Cortex-A76 processor running at up to 2.4GHz, this variant includes a fully certified wireless module offering dual-band Wi-Fi and Bluetooth 5.0 / BLE, combined with 16GB LPDDR4-4267 SDRAM and 16GB onboard eMMC storage.

Compared to previous Compute Module generations, Compute Module 5 provides expanded I/O, including PCIe, USB 3.0, dual 4Kp60 HDMI output, and multiple camera and display interfaces, giving designers greater flexibility and scalability.

Specifications

Form Factor

• Dimensions: 55 × 40 × 4.7 mm

• Mounting: 4 × M2.5 mounting holes

Processor

• SoC: Broadcom BCM2712

• CPU: Quad-core 64-bit Arm Cortex-A76 (Armv8)

• Clock Speed: Up to 2.4 GHz

Memory & Storage

• RAM: 16GB LPDDR4-4267 SDRAM

• Storage: 16GB eMMC flash

Wireless & Networking

• Wi-Fi: Dual-band 2.4 GHz / 5.0 GHz IEEE 802.11 b/g/n/ac

• Bluetooth: Bluetooth 5.0 / BLE

• Antenna Selection: On-board switch for PCB trace or external antenna

• Ethernet: Gigabit Ethernet PHY with IEEE 1588 support

Expansion & I/O

• PCIe: 1 × PCIe x1 root complex (Gen 2, 5Gbps)

• USB:

  • 2 × USB 3.0 (simultaneous 5Gbps)

  • 1 × USB 2.0 (high speed)

• GPIO: Up to 30 GPIO (1.8V or 3.3V selectable)

• Peripheral Interfaces:

  • Up to 5 × UART

  • Up to 5 × I²C

  • Up to 5 × SPI

  • 1 × SDIO

  • 1 × DPI (parallel RGB display)

  • 1 × I²S

  • Up to 4 × PWM channels

  • Up to 3 × GPCLK outputs

Video & Multimedia

• HDMI:

  • 2 × HDMI 2.0 (up to 2 × 4Kp60 simultaneously)

• Camera & Display:

  • 2 × 4-lane MIPI DSI / CSI-2 ports

• Graphics: OpenGL ES 3.1, Vulkan 1.2

• Video Decode: 4Kp60 HEVC
