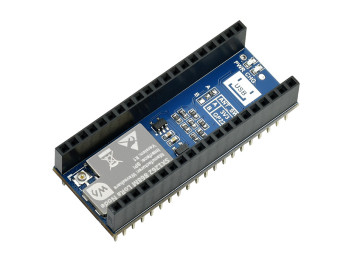

SX1262 LoRa Node Module for Raspberry Pi Pico

The Pico-LoRa-SX1262-XXXM is LoRa node expansion module designed for Raspberry Pi Pico based on SX1262 with better performance than the SX127X series. The LoRa modulation technology solves the balancing problem between transmission distance, interference immunity, and power consumption that traditional solutions aren't able to deal with.

It supports LoRaWAN protocol, which allows it to connect the TTN, ChirpStack servers through a LoRa gateway to use LoRa Cloud service fast and easily.

• Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
• Supports LoRaWAN protocol, different frequency bands are available
• Adopts active temperature compensation crystal oscillator, ensuring stable long-term operating in extreme high/low temperature conditions
• Supports FSK, GFSK, LoRa modulations, outstanding block resistance and ultra long communication distance
• PH1.25 battery header and recharge controller, allows connecting rechargeable Lithium battery
• High receiving sensitivity (up to -148dBm), programmable emitting power (up to 22dBm)
• Supports preamble detection, with CRC, up to 256 bytes data packet engine
• Comes with development resources and manual (example in C)
