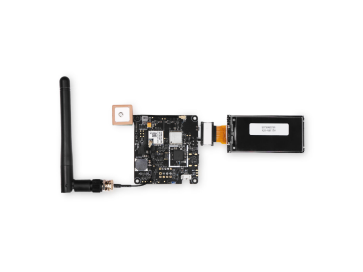

Wio Tracker L1 E-ink
Wio Tracker L1 E-ink
Artikelnummer:
12799
Delivery Time: ab Lager
Verfügbarkeit: Sofort-Versand ab Lager
CHF 31.90
Artikelbeschrieb
Details
The Wio Tracker L1 Series is a low-power, scalable Meshtastic node featuring LoRa (862–930 MHz), an nRF52840 for efficient processing, and an L76K GPS for precise location tracking.
The L1 E-ink version supports a detachable E-ink display — optimized for ultra-low-power, always-on visual updates. Ideal for digital signage, asset tracking.
Feature
Note: The Wio Tracker L1 Series is available in four versions—choose the one that best fits your needs.
- Pre-flashed with Meshtastic firmware
Ready to use out of the box with pre-installed Meshtastic firmware for seamless setup.
- Triple Power Supply Options
Supports Type-C fast charging, solar input, and Li-ion battery power for flexible deployment in various environments—ideal for outdoor and mobile applications.
- Flexible Display Support
Optional 1.3-inch OLED and 2.13-inch E-Ink screens, offering versatile display options for different power consumption and visual feedback needs.
- High Expandability
Fully compatible with the Grove ecosystem, and includes PTH headers and an SWD debugging interface for custom hardware expansion and advanced development.
Specification
General
|
Processor |
Nordic nRF52840 ARM® Cortex®-M4 with FPU runs up to 64 MHz |
|
On-chip Memory |
1 MB flash and 256 kB RAM |
|
Wireless |
LoRa: Based on Wio-SX1262, supports 862-930MHz |
|
Bluetooth 5.0 |
|
|
GPS |
L76K(GPS,BeiDou,GLONASS,QZSS) |
|
Interface |
Screen interfaces: ● 1.3 inch OLED *1 ● 2.13 inch E-ink *1 |
|
Grove *1: UART/IIC/GPIO |
|
|
Plated Through Hole（PTH）: UART/IIC/GPIO/Analog |
|
|
Soldering pads reserved for SWD |
|
|
Power |
Type-C: 5v---1A |
|
Solar energy interface: 5v---1A |
|
|
Battery interface: 3.7v---1A |
|
|
Certification |
FCC, CE, RoHS |
ePaper Display
|
Size |
2.13 inch |
|
Active Area(mm) |
48.55 x 23.7046 |
|
Resolution |
122 x 250 pixels |
|
Pixel Pitch(mm) |
0.1943 x 0.1942 |
|
Display Color |
Black, White |
|
Grayscale |
4 |
|
Partial Refresh Time |
0.42s |
|
Full Refresh Time |
3s |
|
Power Consumption |
10.5mW (typ.) |
|
Standby Consumption |
0.003mW |
Part List
|
Wio Tracker L1 Board |
x1 |
|
2.13 inch E-Ink Display |
x1 |
|
60mm RF Cable(RP-SMA Female to IPEX) |
x1 |
|
LoRa Antenna |
x1 |
|
GPS Antenna |
x1 |
|
24P 0.5mm FPC Connector |
x1 |
|
24P FFC Cable |
x1 |
