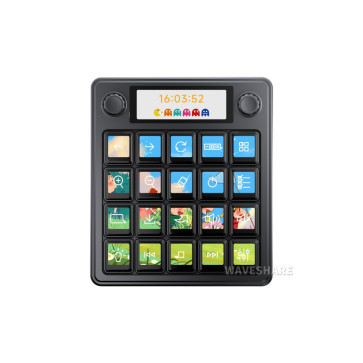

Waveshare MK20 Multi-Functional AI Voice Control Panel

The Waveshare MK20 redefines control and customization with its innovative 20 mechanical LCD keys (0.85" each, 128×128 resolution) and a 2.8" secondary display (428×142 resolution). Together, they form a dynamic and fully configurable interface that supports multi-screen splicing and multi-layer background overlays for an immersive visual experience. Display images, videos, or real-time data — all in one sleek and compact setup.

Precision Dual-Knob Control

Experience precise tactile feedback with two high-accuracy programmable encoder knobs, crafted from anodized aluminum with an anti-slip texture. Each knob supports both rotation and press actions, allowing intuitive control for volume adjustment, music playback, timeline navigation, or fine parameter tuning. Every movement feels natural, responsive, and reliable.

Professional-Grade Mechanical Keys

Each mechanical key delivers satisfying actuation with:

• Actuation Force: 50 ± 10 gf

• Bottom-out Force: 55 ± 10 gf

• Actuation Travel: 1.2 ± 0.30 mm

• Total Travel: 2.8 ± 0.25 mm

• Spring Length: 15.5 mm

• Durability: Up to 50 million presses

Designed for endurance and precision, the MK20 ensures a consistent feel across every keypress.

Dual-System Architecture: Linux + QMK

Powered by a T113-S3 Dual-Core A7 (1.2 GHz) main controller running Linux, and a GD32 MCU running QMK firmware, the MK20 combines complex logic processing with zero-latency mechanical input.

• Supports single keys, key combinations, macros, mouse control, and multi-command chains — all implemented natively in QMK.

• Fully compatible with Windows and macOS systems.

Drag-and-Drop Customization

Create and personalize your own themes using the built-in visual editor — no coding required.
You can also import/export themes and configurations, making it easy to share setups or back up your workspace.

An online platform provides continuous updates, new themes, and plugins to expand your MK20’s capabilities.

Smart Integration & Real-Time Monitoring

The MK20 connects your digital and physical environments seamlessly:

• LibreHardwareMonitor: View real-time CPU temperature, fan speed, and system stats.

• OpenWeather Integration: Display live weather data and dynamic backgrounds.

• System Dashboard: Monitor CPU, GPU, memory, and network activity in real time.

• AI Platform Access: Connect directly to online large-model platforms like DeepSeek and Doubao.

• Home Assistant Integration: One-touch control for your smart home devices.

Premium Build for Enduring Comfort

Engineered with a triangular ergonomic support structure for extended comfort during long sessions.

• Aluminum Alloy Top Case: Durable, sleek, and refined.

• 2.5D Acrylic Lens: High-transparency, hardened, and scratch-resistant (> 3H hardness).

Every detail is designed for a professional, long-lasting, and visually striking experience.
