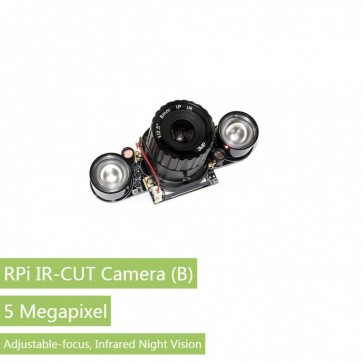

RPi IR-CUT Camera (B)

Artikelnummer: 10880

Delivery Time: Ab Lager

Verfügbarkeit: Sofort-Versand ab Lager

CHF 49.00

Handbücher

Artikelbeschrieb

Details

DESCRIPTION

Raspberry Pi Camera Module, Embedded IR-CUT, Supports Night Vision, Type B

Features

Raspberry Pi Camera, supports all revisions of the Pi
Embedded removable IR-CUT filter, eliminating color distortion in the daylight
Comes with infrared LED, supports night vision
5 megapixel OV5647 sensor
Adjustable focus distance
Camera specifications
- CCD size : 1/4inch
- Aperture (F) : 1.2
- Focal Length : 8mm
- Angle of View (diagonal) : 40 degree
- Sensor best resolution : 1080p
4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
Dimension: 31mm x32mm

Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

Note: the actual image pixels is 5MP, which depends on the sensor, so it doesn't matter that there is a 3MP silk mark on the camera.

Wiki : www.waveshare.com/wiki/RPi_IR-CUT_Camera_(B)

Partnumber	Pixels	Sensor	Adjustable Focus Distance	Infrared Night Vision	Angle of View (diagonal) (degree)	Manufacturer	Dimensions (mm)	Recommendation1
RPi Camera V2	8 Mega	IMX219	×	×	62.2	element14	25x24x9	★★★☆
RPi NoIR Camera V2	8 Mega	IMX219	×	√	62.2	element14	25x24x9	★★★☆
RPi Camera (B)	5 Mega	OV5647	√	×	60.6	Waveshare	32x32	★★★
RPi Camera (D)	5 Mega	OV5647	×	×	66	Waveshare	25x24x9	★★
RPi Camera (E)	5 Mega	OV5647	×	√	69.1	Waveshare	25x24x6	★★
RPi Camera (F)	5 Mega	OV5647	√	√	75	Waveshare	25x24	★★★★
RPi Camera (G)	5 Mega	OV5647	√	×	160	Waveshare	25x24	★★★★
RPi Camera (H)	5 Mega	OV5647	√	√	160	Waveshare	25x24	★★★★
RPi Camera (I)	5 Mega	OV5647	√	×	170	Waveshare	32x32	★★★
RPi Camera (M)	5 Mega	OV5647	√	×	200	Waveshare	25x24	★★★☆
RPi IR-CUT Camera2	5 Mega	OV5647	√	√	75.7	Waveshare	31x32	★★★★
RPi IR-CUT Camera (B)2	5 Mega	OV5647	√	√	40	Waveshare	31x32	★★★★
RPi Zero V1.3 Camera3	5 Mega	OV5647	×	×	69.1	Waveshare	60x11.5x5	★★★
RPi FPC Camera	5 Mega	OV5647	×	×	72	Waveshare	300x16x5	★★★

Weight: 0.053 kg

The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm
