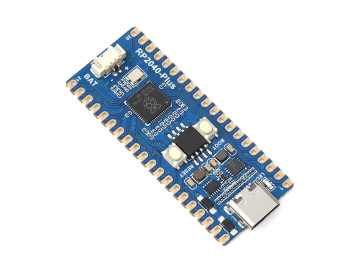

RP2040-Plus without header, 16MB Flash Memory

Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All these problems are solved by our RP2040-Plus now.

As same as Raspberry Pi Pico, it incorporates the RP2040 microcontroller, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins.

What's different, it features onboard 4MB/16MB (optional) Flash, USB-C connector, recharge header, and higher current DC-DC chip.

Features

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 4MB/16MB (optional) of on-board Flash memory
• USB-C connector, keeps it up to date, easier to use
• Lithium battery recharge/discharge header, suitable for mobile devices
• Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip, maximum 2A load current
• Castellated module allows soldering direct to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 26 × multi-function GPIO pins
• 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support
