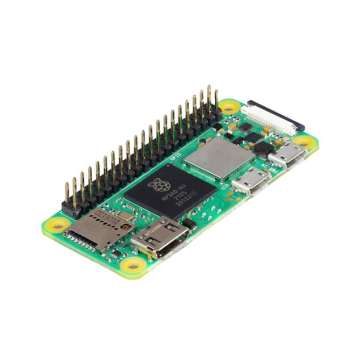

Raspberry Pi Zero 2 WH

The Raspberry Pi Zero 2 W is the newest member of the Zero family, delivering a significant performance leap over the original Zero W while keeping the same small form factor and layout.

Key Features

• Processor: Quad‑core 64‑bit ARM Cortex‑A53 (1 GHz)

• Performance: Around 40 % faster per core and up to 5× better in multi‑core tasks compared to Zero W

• Memory: 512 MB LPDDR2 RAM

• Wireless connectivity: 2.4 GHz Wi‑Fi (802.11 b/g/n), Bluetooth 4.2 and Bluetooth Low Energy (BLE)

• Video output: Mini HDMI (1080p support), composite video via test points

• Storage: microSD card slot for the operating system

• Camera interface: CSI‑2 connector for Raspberry Pi cameras

• USB: Single USB 2.0 port with On‑The‑Go (OTG) support

• GPIO: 40‑pin HAT‑compatible header footprint (available pre‑soldered or bare)

• Power: Micro‑USB 5 V / 2.5 A recommended

• Dimensions: 65 mm × 30 mm

• Operating temperature: –20 °C to +70 °C

Highlights

• Fully compatible with most existing Raspberry Pi Zero cases

• Uses the RP3A0 system‑in‑package, integrating a BCM2710A1 SoC and 512 MB RAM

• Compact size with efficient power consumption

• Same connectors and mounting points as previous Zero boards

• Production guaranteed through at least 2028

Ideal For

• IoT and automation projects

• Compact media devices

• Monitoring, camera, and sensor applications

• Learning and prototyping with Python or Linux

Package Contents

• 1x Raspberry Pi Zero 2 W board (with header)

No accessories or adapters included
