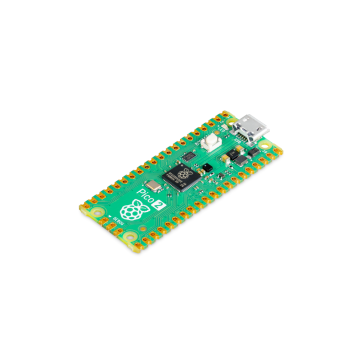

Raspberry Pi Pico 2

Raspberry Pi Pico 2 is a low-cost, high-performance microcontroller board built around the Raspberry Pi RP2350 microcontroller. It is software-compatible with the original Raspberry Pi Pico series and retains the same form factor, GPIO pinout, and micro-USB connector for power and programming.

Compared to the original Raspberry Pi Pico, Pico 2 provides increased performance through a higher core clock speed, double the on-chip SRAM, double the onboard flash memory, more capable processor cores, additional security features, and enhanced interfacing capabilities.

This version does not include wireless connectivity. It does not support Wi-Fi or Bluetooth. For applications requiring wireless communication, a Raspberry Pi Pico W–class board is required.

The RP2350 microcontroller introduces a dual-core, dual-architecture design, allowing selection between Arm Cortex-M33 cores or Hazard3 RISC-V cores. It also integrates a comprehensive security architecture including secure boot, hardware cryptography acceleration, and a true random number generator.

Raspberry Pi Pico 2 is programmable using C/C++ and Python, with full documentation available, and is suitable for both prototyping and production use.

Specifications

• Form factor: 21 mm × 51 mm

• Microcontroller: Raspberry Pi RP2350

• CPU:

  • Dual Arm Cortex-M33 or

  • Dual Hazard3 RISC-V cores

• Maximum clock speed: 150 MHz

• Memory:

  • 520 KB on-chip SRAM

  • 4 MB onboard QSPI flash

• GPIO:

  • 26 multi-purpose GPIO pins

  • 4 pins support analog input (ADC)

• Peripherals:

  • 2 × UART

  • 2 × SPI

  • 2 × I²C

  • 24 × PWM channels

  • 12 × PIO state machines

• USB:

  • USB 1.1 controller and PHY

  • Host and device support

• Input voltage: 1.8 V – 5.5 V DC

• Operating temperature: −20 °C to +85 °C

• Wireless: None
