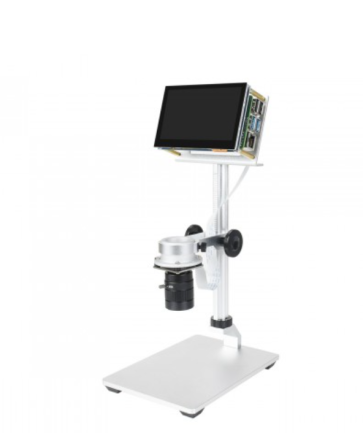

Raspberry Pi Microscope Kit

More powerful processor, richer multimedia performance, better connectivity, Raspberry Pi 4th generation B type, compared with 3rd generation B+, the processor speed is significantly improved, with rich multimedia and better connectivity.

Raspberry Pi 4B main features

• BCM2711B0 64 bit 1.5GHz quad core processor with 4GB memory
• It supports 4K 60fps high-resolution dual screen display by dual micro HDMI interface
• Gigabit Ethernet port, Bluetooth 5.0 BLE, 2.4G / 5G dual-band WIFI
• Dual USB2.0 interface, also with dual USB3.0 interface, faster transmission speed

The camera module is based on the original high-quality camera of Raspberry Pi, which can provide higher resolution and higher sensitivity. With a 6mm wide-angle lens, it has better performance in visual fidelity.

Raspberry Pi original high-quality camera features

• 12 million pixels 4056 (H) × 3040 (V), support RAW12 / 10 /8, COMP8 format output
• 7.9mm CMOS diagonal length
• C-mount/CS-mount lens standard with integrated IR filter

Wide angle lens features

• 6mm Focal Length, 63° Field Angle, Wider Field of View
• F1.2 Aperture, for more sufficient light entering, support manual adjustment

The 4.3-inch IPS screen has the advantages of true color and large viewing angle. At the same time, the DSI display has a high frame rate and does not occupy the Raspberry Pi 40pin GPIO interface. The Raspberry Pi system has good compatibility and is an ideal match for this kit.

4.3-inch capacitive touch screen features

• 800 × 480 pixels IPS screen, combined with tempered glass panel, supports 5-points touch, and the visual angle can up to 160°
• Support DSI display interface, high frame rate, good compatibility with Raspberry Pi system
