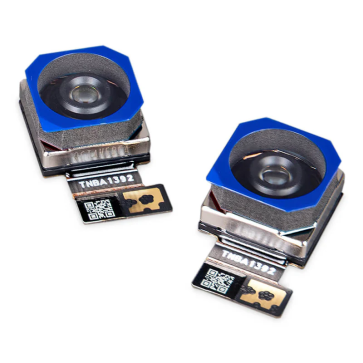

Raspberry Pi Camera Module 3 Sensor NoIR, 120° wide-angle lens

The Raspberry Pi Camera Module 3 Sensor Assembly NoIR (120° wide-angle lens) is a standalone camera sensor module designed for applications requiring infrared sensitivity and a wide field of view.

This NoIR variant is based on the same Sony IMX708 12-megapixel sensor used in the Raspberry Pi Camera Module 3 AF and provides identical powered phase detection autofocus functionality. Unlike the standard version, the NoIR sensor does not include an IR cut filter, making it suitable for low-light imaging, night vision, and computer vision applications when used with an external IR light source.

The 120° wide-angle lens enables a broad field of view, ideal for robotics, security, environmental monitoring, and embedded vision systems. Advanced imaging features such as HDR, dynamic defect pixel correction, and QBC re-mosaic processing ensure high image quality while keeping system complexity low.

Specifications

• Sensor: Sony IMX708

• Resolution: 11.9 megapixels

• Image Size: 4608 × 2592 pixels

• Sensor Size: 7.4 mm diagonal

• Pixel Size: 1.4 µm × 1.4 µm

• Lens: Wide-angle lens, 120° field of view

• Autofocus: Phase Detection Autofocus (PDAF), powered AF

• Image Features:

  • 2D Dynamic Defect Pixel Correction (DPC)

  • QBC re-mosaic function

  • High Dynamic Range (HDR)

• IR Filter: Not present (NoIR variant)

• Operating Temperature: 0 °C to +50 °C

• Memory: On-board EEPROM for camera data
