Raspberry Pi 500+ Plus FR Kit

The Raspberry Pi 500+ FR Kit is an all-in-one desktop computing solution that builds on the Raspberry Pi 500 and significantly upgrades both performance and user experience.
Important: This version features an FR-FR keyboard layout (not FR-CH).

Compared to the base model, the Raspberry Pi 500+ introduces a high-quality mechanical keyboard with individually addressable RGB LEDs and replaceable keycaps, offering a more precise and comfortable typing experience. System memory is increased to 16GB LPDDR4X, and the kit includes a 256GB SSD pre-loaded with the latest Raspberry Pi OS, enabling fast boot times and responsive everyday use.

Powered by a 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU and the VideoCore VII GPU, the Raspberry Pi 500+ is well suited for desktop computing, education, development, and productivity tasks. Integrated wireless connectivity, multiple USB ports, dual micro-HDMI outputs, and the standard 40-pin GPIO header ensure flexibility for both beginners and advanced users.

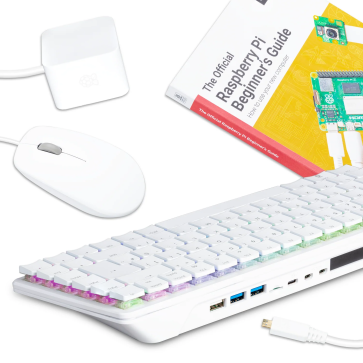

Kit Contents

• Raspberry Pi 500+

• Local USB-C Power Supply

• Mouse

• Micro-HDMI to HDMI cable (2 m)

• Beginner’s Guide (French, where available)

Specifications

• Processor: Quad-core 64-bit Arm Cortex-A76 @ 2.4 GHz

  • 512 KB L2 cache per core

  • 2 MB shared L3 cache

• Graphics: VideoCore VII GPU

• Memory: 16 GB LPDDR4X-4267 SDRAM

• Storage:

  • 256 GB SSD (Raspberry Pi OS pre-installed)

  • microSD slot with SDR104 and command queuing

• Wireless:

  • Dual-band 2.4 / 5.0 GHz 802.11ac Wi-Fi

  • Bluetooth 5.0 / BLE

• USB:

  • 2 × USB 3.0 (5 Gbps)

  • 1 × USB 2.0

• Video Output: Dual micro-HDMI

• Keyboard:

  • Mechanical keyboard (78 / 79 / 83 keys depending on variant)

  • RGB backlighting

• Expansion: 40-pin GPIO header

• Network: Gigabit Ethernet

• Power: 5V / 5A via USB-C power supply (included)

• Additional Features:

  • Power button on keyboard

  • Kensington lock
