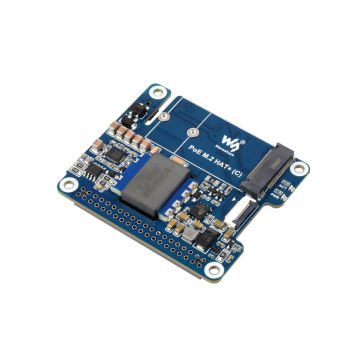

PCIe To M.2 Adapter With PoE Function (C) For Raspberry Pi 5
PCIe To M.2 Adapter With PoE Function (C) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading / Writing
Artikelnummer:
12758
Delivery Time: ab Lager
Verfügbarkeit: Sofort-Versand ab Lager
CHF 27.90
Artikelbeschrieb
Details
PCIe To M.2 with PoE HAT (C)
Designed For Raspberry Pi 5, Supports IEEE 802.3af/at Network Standard
Adapter For NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing
Specifications
| PoE power input | 37V ~ 57V DC in |
|---|---|
| Power output | GPIO header: 5V 5A (MAX) |
| Dimensions | 56.5 × 66.0 (mm) |
| Network standard | IEEE 802.3af/at PoE |
Improves reading/writing speed of your Pi
* for reference only, the Raspberry Pi 5and Solid State Drive are not included.
NVMe Drive Slot Support
* Only supports the NVMe Protocol Solid State Drives.
Connecting to Pi 5 via 16PIN Cable
Based on 16PIN PCIe Interface of Raspberry Pi 5.
Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs
Onboard Dual LED Indicators
Easy to monitor the Working Status
NVMe Drive Protocol Support
Compatible With 2230 / 2242 Size M.2 Solid State Drive
Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive
Power Over Ethernet
providing both network connection and power supply for your Raspberry Pi
in one cable
* for reference only, the Raspberry Pi 5, Network cable, and switch are NOT included.
Wiki: www.waveshare.com/wiki/PoE_M.2_HAT+_(C)
Package content:
Weight: 0.046 kg
- PoE M.2 HAT+ (C) × 1
- 2*2PIN header × 1
- 2*20PIN header × 1
- Screws pack × 1
- SSD mounting screw × 1
