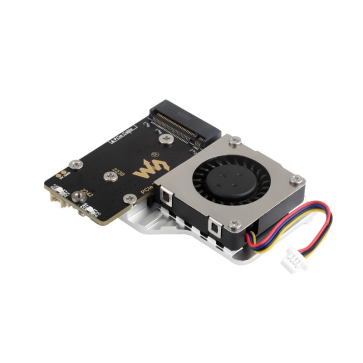

PCIe To M.2 Adapter Board (E) For Raspberry Pi 5
PCIe To M.2 Adapter Board (E) For Raspberry Pi 5, With Cooling Fan, Compatible With 2242 / 2230 Size NVMe Protocol M.2 SSD, High-speed Reading/Writing, Raspberry Pi 5 NVMe
Artikelnummer:
12759
Delivery Time: ab Lager
Verfügbarkeit: Sofort-Versand ab Lager
CHF 14.50
Zubehör
-
-
Raspberry Pi 5 Model B - 8GB RAMRegulärer Preis:
Sonderpreis
-
-
Raspberry Pi 5 Model B - 16GB RAMRegulärer Preis:
Sonderpreis
Artikelbeschrieb
Details
PCIe TO M.2 Board (E)
Compact Size, Cooling Fan All-in-One Design, Suitable for Raspberry Pi 5
Adapter For NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing, Improves Working Efficiency
Specifications
| FAN Input voltage | 5V DC (supplied via four-pin fan header on Raspberry Pi 5) |
|---|---|
| M.2 interface | Supports NVMe Solid State Drives (PCIe Gen2/3) |
| Solid State Drive size support | 2242, 2230 |
| Fan speed control | Pulse width modulation control with tachometer |
| Maximum airflow | 1.39 CFM |
| Fan speed | 8000±10%RPM |
| Material | Anodised aluminium |
Based On Raspberry Pi 5
Matching the size and mounting holes of the Raspberry Pi 5,
combines A Temperature-Controlled Blower Fan with an aluminium heatsink
to accelerate heat dissipation
Connecting to PI5 via 16PIN Cable
Based on 16PIN PCIe Interface of Raspberry Pi 5
NVMe Solid State Drives Support
Compatible With 2242 / 2230 Size M.2 Solid State Drives
Supports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive
Onboard Dual LED Indicators
Easy to monitor the Working Status
Package content
Weight: 0.037 kg
- PCIe TO M.2 Board (E) x1
- MX1.25 2PIN cable x1
- Thermal pad (3PCS) x1
- Screws pack x1
