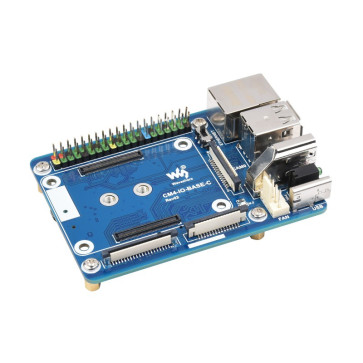

Mini Base Board (C) Designed for Raspberry Pi Compute Module 4
Mini Base Board (C) Designed for Raspberry Pi Compute Module 4
Artikelnummer:
12169
Delivery Time: ab Lager
Verfügbarkeit: Sofort-Versand ab Lager
CHF 22.90
Artikelbeschrieb
Details
Mini Base Board For Compute Module 4 (Advanced Version) Designed for Raspberry Pi Compute Module 4. Waveshare CM4-IO-BASE-C (Advanced Ver.) Inside, Fast And Easy To Build A Mini-Computer.
Specifications
CM4 SOCKET | suitable for all variants of Compute Module 4 |
---|---|
NETWORKING | Gigabit Ethernet RJ45 connector |
CONNECTOR | M.2 M KEY, supports communication modules or NVME Solid State Drives |
Raspberry Pi 40PIN GPIO header | |
USB | USB 2.0 Type A × 2 |
DISPLAY | LCD port (40pin 0.5mm FPC connector) |
CAMERA | MIPI CSI-2 camera port × 2 (15pin 1.0mm FPC connector) |
VIDEO | HDMI port, supports 4K 30fps output |
RTC | Real-time clock with battery socket and ability to wake Compute Module 4 |
STORAGE | TF card socket for Compute Module 4 Lite (without eMMC) variants |
FAN HEADER | allows speed adjustment, 5V |
POWER INPUT | 5V |
DIMENSIONS | 85 × 56mm |
Application Example
- Suitable For Binocular Vision Raspberry Pi Projects
- Working With An Additional Solid State Drives
What's On Board
- CM4 socket
suitable for all variants of Compute Module 4 - Power input/Programming
5V/2.5A power supply, or used for eMMC burning - LCD Port
40PIN LCD display port, for direct connection to 70H-1024600 series display - FAN
for connecting cooling fan, allows speed adjustment via IO ports - CAM
2x MIPI CSI camera ports - HDMI0 connector
HDMI0 port, supports 4K 30fps output - USB 2.0 ports
2x USB 2.0 ports, for connecting sorts of USB devices - Gigabit Ethernet connector
Gigabit Ethernet RJ45 connector, with 10 / 100 / 1000M network support - M.2 indicator
indicating the operating status of M.2 interface - Raspberry Pi indicators
Green LED: PWR, indicating the status of Raspberry Pi power supply
Red LED: ACT, indicating the operating status of Raspberry Pi - Boot switch
ON: CM4 would be booted from USB-C interface
OFF:CM4 would be booted from eMMC or TF card - 40PIN GPIO header
for connecting sorts of HAT - TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY) - FE1.1S
USB HUB chip, support expanding USB port - M.2 slot
supports sorts of NVME Solid State Drives, or communication modules with PCIE M.2 KEY-M interface - RTC chip
allows RTC-related functions like wakeup, shutdown, reboot, and more - RTC interrupt selection
GN-EN: CM4 shutdown(by default) on RTC interruption
PI-RUN: CM4 reboot on RTC interruption
D4: D4 pin is triggered on RTC interruption - RTC battery holder
supports CR1220 button cell
Package Content
- CM4-IO-BASE-C x1
- Solid State Drives mounting screw x1
