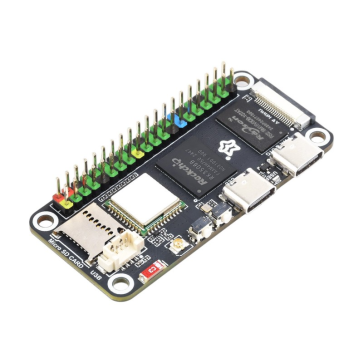

Luckfox Lyra Zero W Micro Linux Development Board
Luckfox Lyra Zero W Micro Linux Development Board Based On RK3506B Chip, Integrated With Triple-core Arm Cortex-A7 And Arm Cortex-M0 Processors
Artikelnummer:
12779
Delivery Time: ab Lager
Verfügbarkeit: Sofort-Versand ab Lager
CHF 17.90
Zubehör
Artikelbeschrieb
Details
Highly integrated and powerful performance
Luckfox Lyra Zero W is a Linux micro development board powered by the Rockchip RK3506B to provide a simple and efficient development platform for developers. Onboard multiple high-speed interfaces including MIPI DSI, SDMMC, USB, etc. to meet various application scenarios. The low-speed interfaces utilize Rockchip Matrix IO design which supports multiplexing 98 function signals on GPIO pins, allows for flexible configuration of interfaces like PWM, UART, I2C, SPI, and I2S for quick development and debugging. Integrated wireless communication module, suitable for IoT communication scenarios such as smart home and industrial control.
Specifications
| Model | Luckfox Lyra Zero W |
| Processor | Triple-core Arm Cortex-A7 (1.2GHz) + Arm Cortex-M0 |
| Memory | Onboard 512MB DDR3L |
| USB | Original USB OTG 2.0 × 1 HUB expanded USB HOST 2.0 × 2 |
| Display Interface | MIPI DSI 2-lane |
| GPIO | 28 × Rockchip Matrix IO pins |
| Default Storage | SPI NAND FLASH (256MB) |
| Wireless communication | Onboard 2.4GHz Wi-Fi 6 / Bluetooth 5.2 / BLE |
- Triple-core ARM Cortex-A7 32-bit core, with integrated VFP to support single-precision and double-precision floating-point operations
- Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configuration
- Supports DDR3L memory interface expansion, meeting various expansion needs
- The low-speed interfaces adopt Rockchip Matrix IO design, which allows rich function signals to share the limited chip pins, making peripheral circuit adaptation more flexible
- Supports multiple audio inputs and outputs, providing high-quality audio playback and recording functions
Easier to develop
Integrated TF card slot, DSI interface, USB-C HOST port, and MX1.25 USB HOST header
WiFi 6 and Bluetooth module
Onboard 2.4GHz WiFi 6 and Bluetooth 5.2/BLE Module, Providing Stable Connection And Efficient Transmission
Antenna Switching
Flexible Switching Between External Antenna and Onboard Antenna to meet more usage scenarios
MIPI DSI 2-lane interface
Compact size, powerful performance, easy to drive large screens
* for reference only, please refer to the Package Content for the detailed part list.
The display resolution of the above LCD is 800 × 1280, Supports up to 1280 × 1280 @ 60Hz resolution.
Rockchip Matrix IO Design
The Rockchip Matrix IO supports 98 multiplexed functions and allows flexible pinout configuration
What's On Board
- USB-C OTG0 port
for power supply and program burning - USER-LED
for indicating system operation status in the default image - USB-C HOST port
for connecting USB peripherals - RESET button
- BOOT button
Press it when powering on or resetting to enter download mode - Antenna connector
- Onboard antenna
- DSI display interface
MIPI DSI 2-lane - 512MB DDR3L
- RK3506B
Multi-core heterogeneous SoC with built-in Triple-core ARM Cortex-A7 + ARM Cortex-M0 - Wi-Fi / Bluetooth module
2.4G Wi-Fi 6 / Bluetooth 5.2 / BLE module - MX1.24 4P header
can be converted to USB-A HOST port or used for LCD screen power input - TF card slot
- 40PIN GPIO header
Compatible with some Raspberry Pi HATs
- USB HUB chip
- PMIC
3-ch power management IC
- W25N02KV
256MB SLC NAND FLASH
