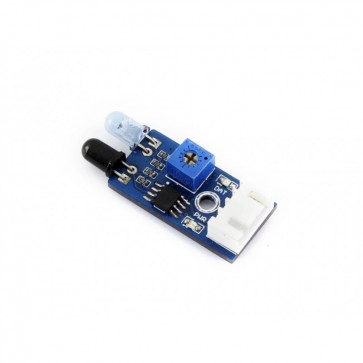

Infrared Proximity Sensor, Obstacle-Avoiding
Infrared Proximity Sensor, Obstacle-Avoiding
Artikelnummer:
10686
Delivery Time: ab Lager
Verfügbarkeit: Sofort-Versand ab Lager
CHF 7.90
Artikelbeschrieb
Details
- Emitting a beam of infrared, and receive the reflected beam
- Features wide range voltage comparator LM393
- Adjustable sensitivity
- Signal output indicator
Specifications
- Power: 3.3V ~ 5V
- Dimension: 39mm × 15.5mm (include the IR LED)
- Mounting holes size: 3mm
- Detection range: 2cm ~ 30cm (depending on the obstacle's color, farthest for white)
- Detection angle: 35°
- Recommended environment: in door, to avoid the sunshine effect
Applications
- Robot path tracking
- Obstacle-avoiding car
- Pipeline counter
How to Use
In the case of working with a MCU:
- VCC ↔ 3.3V ~ 5V
- GND ↔ GND
- AOUT ↔ MCU.IO (analog output)
- DOUT ↔ MCU.IO (digital output)
Zusatzinformation
Zusatzinformation
| Connector | n/a |
|---|
