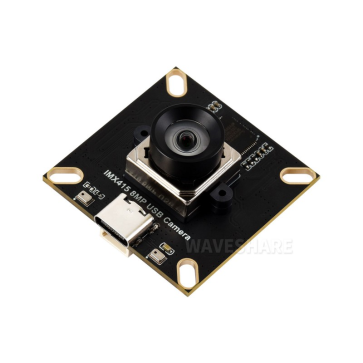

IMX415 8MP High-resolution USB Camera Module
- Experience crystal-clear visuals with an 8MP sensor and a 95.5° wide-angle lens for expansive views.
- Features dual microphones and USB2.0 Type-C connectivity for seamless integration and high-quality audio capture.
Artikelnummer:
13069
Verfügbarkeit: Sofort-Versand ab Lager
CHF 36.30
Artikelbeschrieb
Details
IMX415 8MP High-resolution USB camera module
- 8MP
- USB2.0 port
- 95.5° D-FOV
- dual microphones
Specifications
| Pixels | 8MP | |
|---|---|---|
| sensor chip | IMX415 | |
| Interface | USB2.0 Type-C | |
| Camera | Sensor size | 1/2.8inch |
| F-number | 2.4 | |
| Focal length (EFL) | 2.88mm | |
| Diagonal Field of View (DFOV) | 95.5° | |
| TV Distortion | <1% | |
| Focus Mode | Auto-focus | |
| Image | Format support | MJPG |
| Static image resolution | 3840 × 2160 | |
| Video recording | 30FPS 3840 × 2160 30FPS 2880 × 2160 30FPS 2048 × 1536 60FPS 1920 × 1080 |
|
| Audio | onboard dual microphones | |
| Operating Voltage | 5V ± 5% | |
| Operating temperature | 0°C ~ 50°C | |
| Dimensions | 38.00 × 38.00 (mm) | |
Connecting with USB cable
- Connecting to Raspberry Pi 5
- Connecting to Jetson Orin kit
- Connecting to RDK kit
Wide field of view
Onboard 95.5° wide angle lens, provides a wider picture range and viewing angle
Distortion-Free
Equipped with dual distortion-free lenses with a distortion rate of less than 1%, delivering undistorted imaging and more accurate reproduction of real-world scenes
* Note: In the industry, lenses with distortion rate less than 2% are generally considered distortion-free.
Pinout Definition
Onboard two types of connectors
- Connecting via USB Type-C port
- Connecting via 1.0mm pitch 5PIN header
Package Content
Weight: 0.04 kg
- IMX415 8MP USB Camera (A) x1
- USB Type-A male port to SH1.0 5PIN cable ~100cm x1
