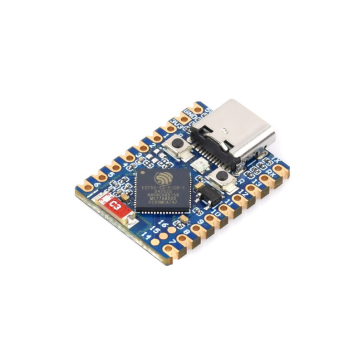

ESP32-S3-Zero Development Board, based on ESP32-S3, onboard multi-function GPIO pins with castellated Module, Suitable For SMD Applications

Board specifications

  • Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE)
  • Built-in 512KB of Static RAM and 384KB ROM, options for 4MB Flash memory with 2MB PSRAM / 8MB Flash memory with 8MB PSRAM
  • Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
  • Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
  • Integrated with USB serial port full-speed controller, 24 × GPIO pins allows flexibly configuring pin functions
  • 4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, 2 × ADC, etc.

Support MicroPython, ESP-IDF, Arduino

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

What's On Board

  1. ESP32-S3 dual-core processor up to 240MHz operating frequency
  2. USB Type-C Port
  3. ME6217C33M5G low dropout LDO, 800mA (Max)
  4. WS2812 RGB LED
  5. 2.4G ceramic antenna
  6. BOOT button Press it and then press the RESET button to enter download mode
  7. RESET button
  8. ESP32-S3 pins

Package Contents

Weight: 0.003 kg

1x ESP32-S3-Zero-N8R8
