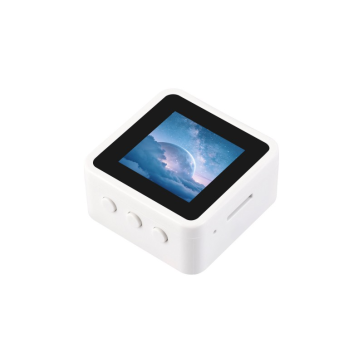

ESP32-C6 1.54inch LCD Display Development Board, 240 × 240 Resolution
- Compact development board with a 1.54-inch LCD, dual microphones, and a 6-axis sensor for interactive applications.
- Features Wi-Fi 6, Bluetooth 5, and supports AI voice interaction, making it ideal for smart device development.
Artikelnummer:
13143
Verfügbarkeit: Zur Zeit nicht an Lager
CHF 19.80
Artikelbeschrieb
Details
This product is designed by Waveshare, featuring a custom-molded square plastic case, offering a compact and premium appearance. Onboard 1.54inch LCD display, 6-axis sensor, dual microphones array, and TF card slot, providing the hardware foundation for display, sensing, voice, and multimedia storage. With these hardware resources, it supports fun interactive mini-games, voice wake-up, noise reduction, and echo cancellation. It allows access to online AI large model platforms, enabling intelligent voice interaction and continuous upgrades. The factory firmware includes built-in functions such as AI conversation, audio playback, photo album, text reading, and a gravity ball game. It can be used directly as an AI chatting toy, while also supporting customization and secondary development.
Key features:
- Equipped with high-performance ESP32-C6 32-bit RISC-V processor, up to 160MHz main frequency
- Supports 2.4GHz Wi-Fi 6 and Bluetooth 5, onboard antenna, with superior RF performance
- Built-in 512KB Static RAM, 320KB ROM, and external 16MB flash
- Type-C port, improving device compatibility, easier to use
- Onboard 1.54inch LCD display for clear color picture display, 240 × 240 resolution, 262K color
- Onboard ES7210 audio encoding chip for dual microphones audio capture and echo cancellation
- Onboard ES8311 audio codec chip, NS4150B amplifier chip, microphones, and speaker
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture to expand applications
- Adapting I2C, UART, and other pin pads for external device connection and debugging, enabling flexible peripheral configuration
- Onboard two customizable function buttons for operations such as single-click, double-click, and long press
- Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
- Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
LCD parameters
| Display panel | IPS | Display Size | 1.54inch |
|---|---|---|---|
| Display Resolution | 240 × 240 resolution | Display Color | 262K |
| communication interface | 4-wire SPI | Driver IC | ST7789 |
| Touch Type (Touch Version Only) |
Capacitive touch | Touch IC (Touch Version Only) |
CST816 |
| Active Display Area | 27.72 × 27.72 (mm) | ||
Small Size, Touch More Possibilities
Suitable For Various Smart Device Development, and Can Realize Human-Computer Interaction Function. Supports connecting to a Batt for independent operation
*for touch version only
IPS Display Panel
Excellent display performance, 262K color, 240 × 240 resolution, with wide viewing angle
Wi-Fi 6 and BLE 5 support
Supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread),
Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh
Supports ESP-IDF, Arduino IDE
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
What's On Board
- ESP32-C6
Integrated RISC-V single-core processor, up to 160MHz operating frequency, supports 2.4GHz Wi-Fi 6 and BLE 5 - 16MB NOR Flash
- NS4150B
audio power amplifier chip - ES8311 audio codec chip
high-performance, low-power audio DAC - ES7210
ADC chip for echo cancellation circuits - Batt recharge and discharge management chip
- QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
- PLUS button
- PWR button
- BOOT button
- Microphones
- TF card slot
- Onboard antenna
- MX1.25 Lithium Batt header
MX1.25 2PIN connector, for 3.7 Lithium Batt, supports charging and discharging - USB Type-C port
ESP32-C6 USB port, for programming and log printing - MX1.25 speaker header
- 1.54inch display panel connector
Package Content
Weight: 0.061 kg
- ESP32-C6-Touch-LCD-1.54 host x1
- 3.7V 1000mAh Lithium Batt x1
- PC insulating sheet x1
