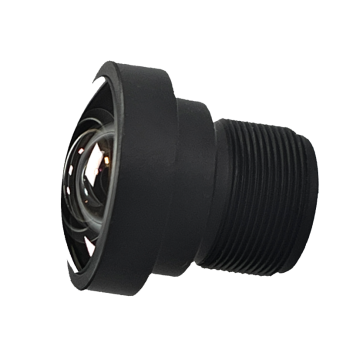

EDATEC 1/2.3'' M12 Mount 2.8mm Focal Length Wide Range Camera Lens 230280-08
- Compatible with cameras featuring M12 interfaces, this lens offers a 102° horizontal field of view on 1/2.3" sensors.
- Features an 8-megapixel resolution, 2.8mm focal length, and F2.4 aperture for high-quality imaging.
Artikelnummer:
12922
Verfügbarkeit: Zur Zeit nicht an Lager
CHF 9.40
Artikelbeschrieb
Details
ED-LENS-M12-230280-08 lens can be used on various cameras with M12 interfaces. This 2.8mm M12 lens provides a 102° Horizontal Field of View on 1/2.3" sensors.
Specifications
| Resolution | 8 Megapixel | ||||
| Optical format | 1/2.3" | ||||
| Image Circle | Φ7.5 | ||||
| TTL (Total Track Length) | 22.00mm | ||||
| EFL (Effective Focal Length) | 2.8mm | ||||
| Aperture | F2.4 | ||||
| Mount | M12×P0.5 | ||||
| FOV (Field of View) DxHxV | 1/2.3"(OV12895) | 1/2.5"(IMX317) | 1/2.7"(OV2710) | 1/2.9"(IMX323) | |
| D | 115° | 109.5° | 106° | 100.9° | |
| H | 102° | 101.4° | 95° | 92.6° | |
| V | 85° | 68° | 66° | 60.4° | |
| Optical Distortion | <-1.36% | <-1.16% | <-0.9% | <-0.7% | |
| CRA (Chief Ray Angle) | < 20.95° | < 18.68° | < 17.2° | < 16° | |
| Relative Illuminance | >54.76% | >61.6% | >66% | >70% | |
| MOD (Minimum Object Distance) | 0.3m | ||||
| BFL (Back Focal Length) | 4.92mm | ||||
| MBF (Mechanical Back Focal) | 3.74mm | ||||
| Structure | 4G2P | ||||
| Operation | Focus | Manual | |||
| Iris aperture | Fixed | ||||
| Dimension (mm) | Φ18×18.26 | ||||
| Weigh (g) | 6.7 | ||||
| Working Temperature | -20ºC to +70ºC | ||||
| Unit | mm | |||
| Size Tolerance | 0-10±0.05, 10-30±0.1, 30-120±0.2 | |||
| Angle Tolerance | ±2° | |||
