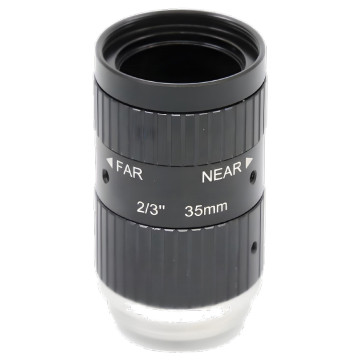

EDATEC 1/2.3'' C-Mount 35mm Focal Length Camera Lens 303500-10
ED-LENS-C-303500-10 is a 35 mm C-Mount lens for the Raspberry Pi HQ Camera, featuring manual focus and an adjustable aperture (F2.8–F16). It supports up to 10 MP resolution and provides a 14.8° horizontal field of view on 2/3″ sensors.
Artikelnummer:
12997
Verfügbarkeit: Zur Zeit nicht an Lager
CHF 47.55
Artikelbeschrieb
Details
ED-LENS-C-303500-10 is a C-Mount lens compatible with the Raspberry Pi HQ Camera module. With a 35mm focal length, it supports manual focus and adjustable aperture, providing a 14.8° Horizontal Field of View on 2/3" sensors.
Specifications
| Resolution | 10 Megapixel | |||
| Optical format | 2/3" | |||
| EFL (Effective Focal Length) | 35mm | |||
| Aperture | F2.8-F16, adjustable | |||
| Mount | C-Mount | |||
| Filter Thread | M27×P0.5 | |||
| FOV (Field of View) DxHxV | 2/3" | 1/2" | 1/3" | |
| D | 18.39° | 13.4° | 10.1° | |
| H | 14.8° | 10.8° | 8.1° | |
| V | 11.1° | 8.1° | 6.1° | |
| TV Distortion | -0.172% | -0.077% | -0.0450% | |
| MOD (Minimum Object Distance) | 0.2m~∞ | |||
| BFL (Back Focal Length) | 13.63mm | |||
| Operation | Focus | Manual | ||
| Iris aperture | Manual | |||
| Dimension (mm) | Φ29×46.4 | |||
| Weigh (g) | 65 | |||
| Working Temperature | -20ºC to +60ºC | |||
| Unit | mm | |||
| Size Tolerance | 0-10±0.05, 10-30±0.10, 30-120±0.20 | |||
| Angle Tolerance | ±2° | |||
