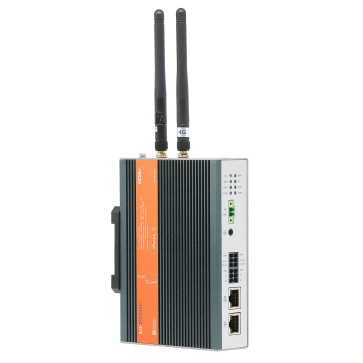

EDATEC IPC3110 Industrial Computer, wireless, 4GB RAM, 32GB eMMC - based on CM5
ED-IPC3110-10432-S
Artikelnummer:
12777
Delivery Time: ab Lager
Verfügbarkeit: Zur Zeit nicht an Lager
CHF 229.00
Artikelbeschrieb
Details
| System | |
|---|---|
| CPU | Broadcom BCM2712, quad core Cortex-A78 (ARM v8) 64-bit SoC @ 2.4GHz |
| VPU | H.265 (HEVC), up to 4Kp60 decode |
| GPU | OpenGL ES 3.1 & Vulkan 1.2 |
| Memory | 8GB LPDDR4-4267 SDRAM |
| Storage | 32GB eMMC storage |
| Software | |
|---|---|
| Operating System | Raspberry Pi OS (Desktop) 32-bit Raspberry Pi OS (Lite) 32-bit Raspberry Pi OS (Desktop) 64-bit Raspberry Pi OS (Lite) 64-bit |
| Front I/O | |
|---|---|
| Power | 1 x DC IN, 2-Pin 3.5mm pitch phoenix terminals with screw holes. It supports 9V~36V input, the signal is defined as VIN+/GND. |
| RS485/232 | 12-Pin 3.5mm pitch phoenix terminals with IO isolator, which are equipped with electrostatic and surge protection. Different numbers of RS232 and RS485 ports can be selected according to actual application. The signal of RS485 is defined as IGND/A/B, and the signal of RS232 is defined as IGND/TX/RX.
|
| 1000M Ethernet | 1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access the network. |
| 100M Ethernet | 1 x adaptive 10/100M ethernet port, RJ45 connector. It can be used to access the network. |
| Rear I/O | |
|---|---|
| SD Card Slot | 1 x Micro SD card slot, using to install Micro SD card for storing user data. |
| SIM Card Slot | 1 x Nano SIM card slot, using to install Nano SIM card for getting 4G signal. |
| Micro USB | 1 x Micro USB port, supporting to flash to eMMC for the system. |
| Side I/O | |
|---|---|
| HDMI | 1 x HDMI port, Type-A connector. It is compatible with HDMI 2.0 standard and supports 4K 60Hz. |
| USB 2.0 | 2 x USB 2.0 ports, Type-A connector, supporting up to 480Mbps. |
| Antenna | 2 x SMA ports (optional), using to connect 4G antenna and Wi-Fi/BT antenna. |
| Buttons and Indicators | |
|---|---|
| Reset | 1 x Reset button, which can reset the device. |
| PWR | 1 x red power indicator, using to check the status of device power-on and power-off. |
| 4G | 1 x green 4G indicator, using to check the status of 4G signal. |
| ACT | 1 x green system indicator, using to check the working status of device. |
| USER | 1 x green user indicator, user can customize a status according to actual application. |
| COM1~COM4 | 4 x green UART indicators, using to check the communication status of UART port. |
| Internal I/O | |
|---|---|
| 40-Pin GPIO | 1 x GPIO Pin Header, 2x20-Pin 2.54mm pitch, using to lead out the GPIO ports of CM4. These pins are defined as GPIO1~GPIO27/3V3/5V2/GND. It is Compatible with expansion modules, and reserves to connect expansion accessories. |
| M.2 B | 1 x M.2 B, M.2 B Key connector, supporting to connect SSD. It is compatibles with M.2 B 2230 and M.2 B 2242 SSD. |
| Expansion Functions | |
|---|---|
| EEPROM | Supports 4K byte storage and improves the ease of use of device. |
| Crypto Authentication | It can be matched to realize the required upper layer application and improves the security of device. |
| RTC | RTC with 1F SuperCAP backup, which can ensure that the system clock is not affected by device power-off. We also provide a battery base, and you can buy a CR1220 battery backup for RTC. |
| Buzzer | A tip or an abnormity can be configurated according to actual application, which realizes the alarm function. |
| Watch Dog* | This function has been reserved on hardware. But we need additional software to support it, which is under development. |
| Electrical Characteristics | |
|---|---|
| Input Voltage | 9V ~ 36V DC |
| Power Consumption | 24W (Max) |
| Mechanical Characteristics | |
|---|---|
| Dimensions | 143mm x 100mm x 35mm (WxDxH, DIN-rail bracket and antenna are not included.) |
| Weight | 750g |
| Installation | DIN-rail installation |
| Wireless | |
|---|---|
| Wi-Fi/Bluetooth | 2.4GHz & 5GHz dual-band Wi-Fi and Bluetooth with antenna.
|
