Binocular Camera Base Board Designed for RPi Compute Module 4
Binocular Camera Base Board Designed for Raspberry Pi Compute Module 4, Optional Interface Expander
Artikelnummer:
11755
Delivery Time: ab Lager
Verfügbarkeit: Sofort-Versand ab Lager
CHF 91.00
Artikelbeschrieb
Details

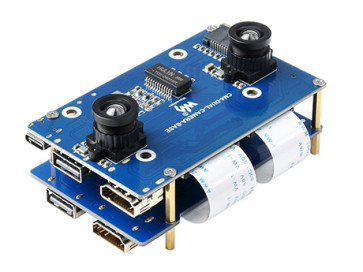

Binocular Camera Base For CM4
Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products
Designed for Compute Module 4 Lite/eMMC variants
Dual camera base + Interface expander
Comes with additional interface expander, providing standard 40PIN GPIO header for HATs, M.2 slot for SSD or communication module, and more video/USB ports.
Connecting With Compute Module 4
Standard CM4 Socket, Compatible With Compute Module 4 Lite/EMMC Variants
Dual Camera Base Introduction
Providing Interfaces Including ETH, HDMI, Micro SD, USB
| DUAL CAMERA BASE SPECIFICATIONS | ||
|---|---|---|
| CM4 socket | suitable for all variants of Compute Module 4 | |
| Networking | Gigabit Ethernet RJ45 | |
| USB | USB 2.0 × 1 | |
| FFC connector | HDMI & PCIe & USB FFC connector × 1 | |
| GPIO FFC connector × 1 | ||
| Dual camera | pixels | 8MP |
| sensor | IMX219 | |
| resolution | 3280 × 2464 (per channel) | |
| CMOS size | 1/4 inch | |
| aperture | F2.4 | |
| focal length | 2.6mm | |
| FOV | 83/73/50 degree (diagonal/horizontal/vertical) | |
| distortion | < 1% | |
| baseline length | 60mm | |
| Video | HDMI × 1, supports 4K 30fps output | |
| Storage | MicroSD card socket for Compute Module 4 Lite (without eMMC) variants | |
| Power input | 5V/2.5A | |
| Dimensions | 85.0 × 51.5mm | |
Interface Expander Introduction
Providing Interfaces Including GPIO, HDMI, USB, M.2 M KEY
| INTERFACE EXPANDER SPECIFICATIONS | |
|---|---|
| USB | USB 2.0 × 3 |
| FFC connector | HDMI & PCIe & USB FFC connector × 1 |
| GPIO FFC connector × 1 | |
| Other connector | M.2 M KEY × 1, for connecting NVME SSD or communication module |
| Raspberry Pi 40PIN GPIO header × 1 | |
| Video | HDMI × 1, supports 4K 30fps output |
| Dimensions | 85.0 × 51.5mm |
8MP, Clear Imaging, Effective Recognition
Dual 8MP Cameras, Up To 3280 × 2464 Resolution Per Camera
Dual 4K UHD Outputs Support*
Dual HDMI Ports, Supports Dual 4K 30fps Outputs
* the interface expander is required for dual 4K outputs.
Reserved Space For Heatsink
Allows Attaching Heatsink For Better Heat Dissipation
Extensive Applications
For AI Applications Like Vision Robots, Depth Vision Projects, Stereo Vision Projects...
Intelligent traffic
Detection and recognition for motor vehicles, non-motor vehicles, pedestrians, traffic signs, traffic events...
Intelligent driving
Recognizing and ranging around vehicles and road conditions, recognizing the driver status and providing intelligent assistance.
Math contest
Suitable for teaching competitions like robotic vision, OpenCV, AI IoT projects, Python programming, and so on.
Robotics
Used on industrial robots field, enabling robot functions like target identification, positioning, size measuring, binocular depth mapping, navigation...
What's On Board
The Dual Camera Base
- CM4 socket
suitable for all variants of Compute Module 4 - HDMI connector
supports 4K 30fps output - USB 2.0 port
for connecting sorts of USB devices - PWR & USB
USB-C connector, 5V DC power supply or USB programming port - BOOT selection
ON: CM4 will be booted from USB-C interface
OFF: CM4 will be booted from eMMC or Micro SD card
- CM4 status indicator
PWR: Raspberry Pi power indicator
ACT: Raspberry Pi operating status indicator - RJ45 Gigabit Ethernet
10/100/1000M compatible - Micro SD card slot
for connecting a Micro SD card with pre-burnt image (Lite variant ONLY) - GPIO FFC connector
for expanding 40PIN GPIO - HDMI & PCIe & USB FFC connector
for expanding HDMI1, PCIe, USB - Dual cameras
IMX219, 8MP
The Interface Expander
- USB 2.0 port
for connecting sorts of USB devices - HDMI1 connector
supports 4K 30fps output - HDMI & PCIe & USB FFC connector
for expanding HDMI1, PCIe, USB - GPIO FFC connector
for expanding 40PIN GPIO
- 40PIN GPIO header
for connecting sorts of Raspberry Pi HATs - M.2 M KEY
for NVME SSD, or communication module with PCIE M.2 M KEY interface - M.2 indicator
indicating operating status of the interface
Package content
- Dual camera base x1
- Screws pack x1
- Interface expander x1
- FFC 2PCS x1
WIKI: CM4-DUAL-CAMERA-BASE
