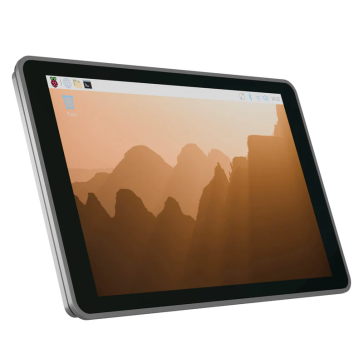

Argon Industria HMI 10CS - 10" Touch Display + Enclosure for Pi 5

The Argon40 Industria HMI 10CS is an industrial-spec 10" 10-point touch display combined with a solid aluminium enclosure for the Raspberry Pi 5. It's perfect for HMI (Human Machine Interface) deployments and other VESA or panel-mounted Raspberry Pi display projects.

Thanks to its lipped profile and soft foam gasket, the enclosure is designed for straightforward panel and VESA mounting. The Argon HMI 10CS combines a 10" 1280×800 10-point capacitive touch DSI display with a solid aluminium enclosure built to house a Raspberry Pi 5, offering excellent passive cooling, HAT compatibility, re-routed port access, and cable punch-outs.

The thick aluminium body efficiently dissipates heat from the internal hardware. You can also install the included custom passive CPU cooling column to convert the case into a passive heatsink, transferring heat from the Pi 5 CPU to the enclosure body via the included thermal pad.
Important: Installing the passive CPU cooling column disables HAT compatibility. If you need to use HATs, simply remove the cooling column and consider heatsinks or active coolers if required.

The included internal IO PCB re-routes HDMI and USB-C power inputs to the same edge as the USB and Ethernet ports — along the side of the enclosure. It also converts micro-HDMI to full-size HDMI for a more durable connection.

A range of optional internal M.2 accessory boards will soon be available, allowing you to connect M.2 devices via the PCIe interface to the side of the board (above the IO PCB).

Raspberry Pi is not included.

Key Features

• 10" touch display + solid aluminium enclosure combo

• Compatible with Raspberry Pi 5

• Panel and VESA mounting support

• 10" 1280×800 optically bonded DSI display

• 10-point capacitive touch

• Solid aluminium enclosure

• Passive cooling via aluminium body

• HAT compatible

• Re-routed port access via internal IO PCB

  • Full-size HDMI output

• Cable punch-outs included

Package Contents

• 1× Argon Industria HMI 10CS, including:

  • 10" Touch Display

  • Enclosure for Raspberry Pi 5

  • All required fixings and cables

Raspberry Pi 5 not included
