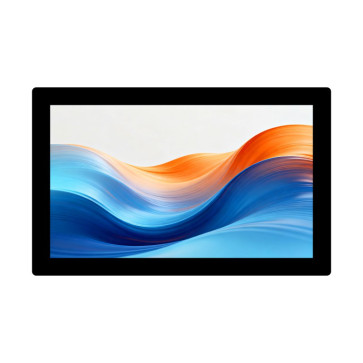

9inch DSI Capacitive Touch Display

The Waveshare 9″ Wide Color Gamut DSI Touch Display is a high-quality IPS panel designed for vivid color reproduction, wide viewing angles, and responsive touch performance. Featuring DSI display connectivity and a 10-point capacitive touch interface, it delivers outstanding display quality for Raspberry Pi and embedded platforms such as RK3576, RK3506, and ESP32-P4.

Engineered for versatility and precision, this display offers wide compatibility, software-adjustable brightness, and a durable toughened glass surface—perfect for industrial, educational, and creative applications.

Display Highlights

• Size: 9 inches

• Resolution: 720 × 1280 (portrait by default, configurable for landscape)

• Panel Type: IPS for superior color and contrast

• Viewing Angle: 160° wide viewing

• Brightness: 500 cd/m² for vibrant, daylight-readable visuals

• Touch Type: Capacitive

• Touch Points: Up to 10-point multi-touch (OS-dependent)

• Touch Port: I²C interface

• Touch Panel: Toughened glass, hardness up to 6H

Stunning Visual Experience

Equipped with wide color gamut LED technology, the 9″ DSI display achieves richer hues, deeper contrast, and more pure chroma.
The IPS panel ensures consistent color accuracy and clarity from virtually any angle — ideal for high-quality visual interfaces, dashboards, and media applications.

10-Point Capacitive Touch Precision

The multi-touch capacitive panel supports up to 10 simultaneous touch points, enabling smooth gesture control, pinch zooming, scrolling, and interactive UI operations.
With a 6H hardness toughened glass layer, it offers excellent resistance to scratches and wear — ensuring long-term durability even in intensive use environments.

Wide Device & System Compatibility

The 9″ DSI Touch Display is compatible with multiple development boards and operating systems, supporting a variety of platforms right out of the box:

Note: Display orientation defaults to portrait (720×1280 H×V). You can modify software settings to switch to landscape mode.

Connection Examples

• Raspberry Pi 5: Connect the FFC cable to the DSI port and power the LCD through the GPIO 5V pin.

• Raspberry Pi 4B: Use the included DSI cable connection and GPIO 5V for power.

• ESP32-P4-NANO / Luckfox Omni3576 / Luckfox Lyra: Compatible with multiple host boards for embedded applications.

(Controller boards and host devices shown are for reference only and are not included.)

Software-Controlled Backlight Adjustment

Easily fine-tune the display brightness through software control, allowing optimized visibility for any environment — from bright labs to dim indoor conditions.

Customizable Touch Screen Solutions

Waveshare also offers custom touch screen options to meet specific project or integration requirements, ensuring flexibility across consumer, industrial, and OEM applications.
