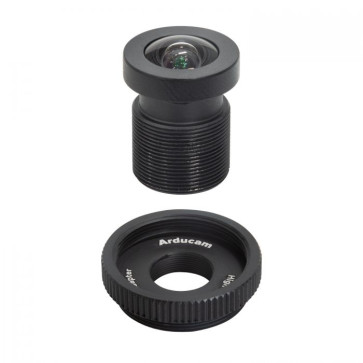

90 Degree Wide Angle 1/2.3" M12 Lens with Adapter for Raspberry Pi HQ Camera

In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of M12-mount lenses from long focus to wide angle for shooting on your Rpi HQ cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future.

Lens Specification

• Model No: M23356H09
• Optical Format: 1/2.3”
• Focal Length: 3.56mm
• Aperture: F2.5
• Field of View (FOV): 90° (H) on Raspberry Pi High Quality Camera, 55°(H) on Raspberry Pi V1/V2 Camera
• Mount: M12 mount
• Back Focal Length: 5.92mm
• MOD: 0.2m
• Dimension: Φ14×16.3mm
• Weight: 7g
• IR Sensitivity: sensitive to visible light, with 650nm IR filter

Package Includes

• 1pcs 1/2.3″ M12 90 degree wide angle camera Lens
• 1pcs M12 lens adapter

Documentation

3D drawing
