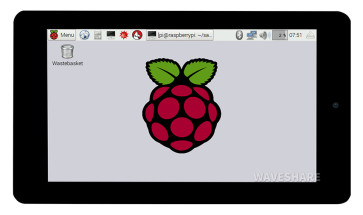

7inch Capacitive Touch Display with Camera for Raspberry Pi
7inch Capacitive Touch Display for Raspberry Pi, with 5MP Front Camera, 800×480, DSI
Artikelnummer:
11776
Delivery Time: ab Lager
Verfügbarkeit: Sofort-Versand ab Lager
CHF 94.90
Artikelbeschrieb
Details
1) up to 5-points touch, depending on the operating system.
7inch Capacitive Touch Display For Raspberry Pi, With 5MP Front Camera, 800×480, DSI Interface
Features
- Size
7″ - Resolution
800×480 - Front Camera
5MP - Display Port
DSI - Power Consumption
Low Power - Touch Type
Capacitive - Touch Points
5-Points - Touch Port
I2C - Touch Panel
Toughened Glass
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 5-points touch, driver free
Supports Ubuntu, single point touch, driver free
Supports Ubuntu, single point touch, driver free
Supports Pi 4B
5MP Front Camera
| SENSOR | OV5647 | CMOS SIZE | 1/4 inch |
|---|---|---|---|
| PIXELS | 5MP | APERTURE | F2.4 |
| FOCAL LENGTH | 3.89mm | DIAGONAL FOV | 72.9° |
| DISTORTION | < 1.5% | DEPTH OF FIELD | 20cm ~ ∞ |
| IMAGE | 2592 × 1944 still image resolution | ||
| VIDEO | 1920 × 1080p @30, 1280 × 720p @60, 640 × 480p @60, 640 × 480p @90 | ||
Touch Control
1) up to 5-points touch, depending on the operating system.Adjustable Brightness Via Software
Wiki: 7inch_DSI_LCD_(with_cam)
Weight: 0.281 kg
- 7inch DSI LCD x1
- FPC 15PIN 1.0 pitch 50mm (opposite sides) x2
- FPC 15PIN 1.0 pitch 120mm (opposite sides) x1
- 2PIN wire 10cm x1
- Screws pack x1
