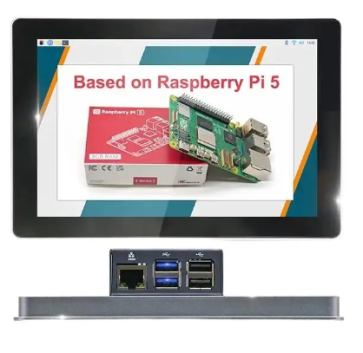

EDATEC HMI3010, 7" Touch Screen Industrial, without Pi5, 32GB SD Card - based on Pi5

The ED-HMI3010 is a sophisticated industrial human-machine interface (HMI) device designed for advanced control and monitoring applications in various industries. This device is built around the powerful Broadcom BCM2712 processor, which features a 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, ensuring high-speed processing capabilities for demanding tasks.

This HMI device boasts dual 4Kp60 HDMI display outputs, enabling high-resolution video display capabilities. It also features a range of interfaces including one Gigabit ethernet port, two USB 3.0 ports, and two USB 2.0 ports, which provide extensive options for connecting peripherals and networking devices. Power to the ED-HMI3010 is supplied through a 5V DC input via a USB-C connector, offering a modern and convenient power solution.

Specification

• CPU: Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76
• VPU: 4Kp60 HEVC decoder
• GPU: OpenGL ES 3.1 & Vulkan 1.2
• Storage: 32GB SD card

Software - Operating System

• Raspberry Pi OS(Desktop) 32-bit
• Raspberry Pi OS(Lite) 32-bit
• Raspberry Pi OS(Desktop) 64-bit
• Raspberry Pi OS(Lite) 64-bit

Side I/O

• USB 2.0: 2 x USB 2.0 ports, dual layer type A connector, each channel supports up to 480Mbps.
• USB 3.0: 2 x USB 3.0 ports, dual layer type A connector, each channel supports up to 5Gbps.
• Ethernet: 1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access the network.
• SD Card Slot: 1 x Micro SD card slot, which is used to install SD card. It supports booting the OS from SD card.
• HDMI: 2 x HDMI ports, Micro HDMI connector, supporting 4K 60Hz
• Power: 1 x power in port, USB Type-C connector, supporting 5V/5A DC power input.

Internal I/O

• PCIe: 1 x PCIe2.0 port, reserving to connect peripherals.
• PoE: 1 x PoE port, reserving to connect PoE module

LCD

• LCD Size: 7" TFT
• Resolution: 1024 x 600
• Colors: 16.7MB
• Active Area: 154.21mm(H) x 85.92mm(V)
• Backlight: LED
• MTBF: >30000h
• Luminance: 400cd/m^2
• Contrast Ratio: 800:1
• Response Time: 30ms
• Viewing Angle(CR≥10): 85°(L)/85°(R)/85°(U)/85°(D)

Touch Screen

• Type: Multi-point Capacitive Touch Screen
• Transmittance: ≥85％
• Connection Method: COF
• Controller Interface: I2C
• Driver Support: Linux
• Multi-touch: 10 points
• Surface Hardness: 6H

Electrical Characteristics

• Input Voltage: 5V DC
• Maximum Power Consumption: 25W(Max)

Mechanical Characteristics

• Dimensions : 188mm x 123mm x 39mm (WxDxH)
• Weight: About 800g
• Installation: Embedded front installation
• Wi-Fi: Dual-band 802.11ac Wi-Fi
• Bluetooth: Bluetooth 5.0 / Bluetooth Low Energy (BLE)

Environmental & Regulatory

• Operating Temperature: -20°C ~ 60°C
• Storage Temperature: -25°C ~ 60°C
• Ambient Humidity : 5% ~ 95% (non-condensing)

Certifications

• FCC 47 CFR Part 15 Subpart B
• EN IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3
• EN 55032/EN 55035/
• EN 301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52
• EN 301 328/EN 301 440/EN 301 511/EN 301 908-1/EN 301 908-2
