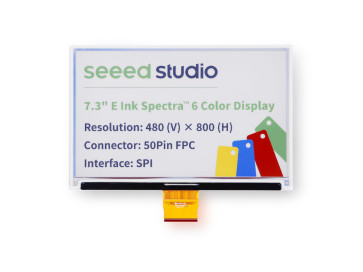

7.3″ Spectra™ 6 E-Paper Display (800×480, 6-Color, SPI)

The 7.3″ Spectra™ 6 ePaper Display is a high-quality, low-power display designed for applications requiring clear visibility and multi-color output. It supports six colors (black, white, red, yellow, green, blue), enabling more expressive and informative visual content compared to traditional monochrome ePaper.

Using advanced E Ink Spectra™ 6 technology, the display offers paper-like readability, wide viewing angles, and stable images that remain visible without continuous power. Power is only consumed during refresh cycles, making it ideal for battery-powered systems.

The display connects via a 50-pin SPI interface and is designed to work with compatible driver boards such as the XIAO ePaper Display Board EE04.

Technical Specifications

Display

• Size: 7.3 inches

• Resolution: 800 × 480 pixels

• Active area: 160 × 96 mm

• Pixel pitch: 0.200 × 0.200 mm

• Display colors:

  • Black

  • White

  • Yellow

  • Red

  • Green

  • Blue

Interface

• Communication: SPI

• Connector: 50-pin FPC (0.5 mm pitch)

Mechanical

• Dimensions: 170.2 × 111.2 × 0.9 mm

• Weight: ~60 g

Package Contents

• 7.3″ Spectra™ 6 ePaper Display ×1

• 50-pin adapter ×1

• 50-pin FFC extension cable ×1
