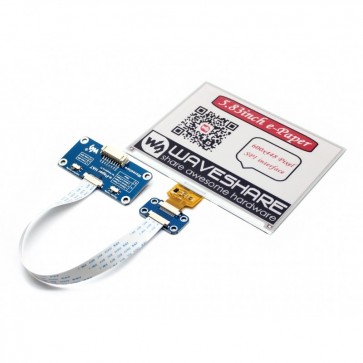

5.83inch E-Ink display HAT (600x448), red/black/white three-color

5.83inch E-Ink display HAT (600x448), red/black/white three-color
Artikelnummer: 10797

Delivery Time: ab Lager

Verfügbarkeit: Sofort-Versand ab Lager

CHF 62.90
Waveshare
Artikelbeschrieb
Details

This is an E-Ink display HAT for Raspberry Pi, 5.83inch, 600x448 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
  • SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Operating voltage: 3.3V~5V
  • Interface: SPI
  • Outline dimension: 125.40mm × 99.50mm
  • Display size: 118.80mm × 88.26mm
  • Dot pitch: 0.198 × 0.197
  • Resolution: 600 × 448
  • Display color: red, black, white
  • Grey level: 2
  • Full refresh time: 14s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°

Interface

SYMBOLDESCRIPTION
VCC 3.3V~5V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output, low active

Dimensions

5.83inch e-Paper HAT dimensions

Development Resources

Wiki : www.waveshare.com/wiki/5.83inch_e-Paper_HAT_(B)_
