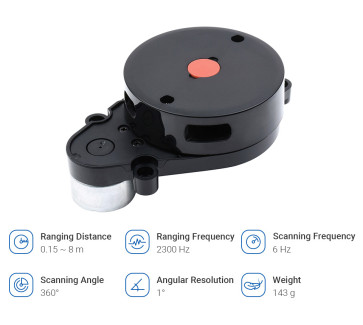

360° Omnidirectional Triangulation Lidar

Supports Start-Stop Control Via Software

Provides open-source program, schematic diagram, and other resources of the adapter board, which can be used to develop and operate the Lidar personally, effectively prolonging its lifetime

8m Radius Ranging

LD14 can sense the environment information in a longer range, which ensures the robot’s ability to cruise and build maps in a larger area and obtain more environmental profile information

360° Omnidirectional Laser Scanning

LD14 rotates clockwise in the ranging core to achieve 360° scanning of the surrounding environment, thus obtaining the information of the plane point cloud of the space where it is located.

2300Hz Ranging Frequency

 2300Hz ranging frequency which can easily scan the outline of the scene within the ranging range and realize fast and accurate mapping

Triangulation Technology

LD14 is based on triangulation radar technology to achieve independent mapping and obstacle detection for the robot

Thin, Compact And Stylish Appearance

With a thin and light structure design, while ensuring performance, it features smaller size, lower power consumption, and easier installation, can be adapted to more robot types

Laser Safety FDA Class 1

To ensure the safety for humans and pets, a low power infrared laser emitter is used as the light source and is driven by modulated pulses, the laser completes the emitting action in a very short period of time, complying with the FDA Class 1 human eye safety rating

High-Performance Light-Sensitive CMOS

LD14 adopts high-performance light-sensitive CMOS, higher efficiency, more stable performance, more dense collecting points, and more accurate mapping

Package content
