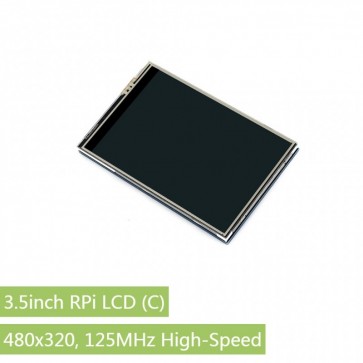

3.5inch RPi LCD (C), 480x320, High-Speed SPI
3.5inch RPi LCD (C), 480x320, High-Speed SPI
Artikelnummer:
10912
Delivery Time: Ab Lager
Verfügbarkeit: Sofort-Versand ab Lager
CHF 32.90
Artikelbeschrieb
Details
DESCRIPTION
480x320, 3.5 inch Touch Screen TFT LCD Designed for Raspberry Pi, 125MHz High-Speed SPI
Features
- 480x320 hardware resolution
- Resistive touch control
- Supports any revision of Raspberry Pi (directly-pluggable)
- 125MHz High-Speed SPI signal transmission, clear & stable display effect
- Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
- Supports FBCP software driver as well, allows to config software resolution and set up dual-display
- Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+)
- High quality immersion gold surface plating
- Combined with the Raspberry Pi (refresh rate up to 50Hz), allows you to:
- Watch videos (multi formats like MP4)
- Play video games (RetroPie, take a bite)
- Take photos by touching (up to 17 camera modes)
- Use software keyboard (system interaction without keyboard/mouse)
Key Parameters
| LCD Type | TFT |
|---|---|
| LCD Interface | SPI |
| Touch Screen Type | Resistive |
| Touch Screen Controller | XPT2046 |
| Colors | 65536 |
| Backlight | LED |
| Resolution | 480x320 (Pixel) |
| Aspect Ratio | 8:5 |
| Power Consumption | TBD |
| Backlight Current | TBD |
| Operating Temp. (℃) | TBD |
Interface
| PIN NO. | SYMBOL | DESCRIPTION |
|---|---|---|
| 1, 17 | 3.3V | Power positive (3.3V power input) |
| 2, 4 | 5V | Power positive (5V power input) |
| 3, 5, 7, 8, 10, 12, 13, 15, 16 | NC | NC |
| 6, 9, 14, 20, 25 | GND | Ground |
| 11 | TP_IRQ | Touch Panel interrupt, low level while the Touch Panel detects touching |
| 18 | LCD_RS | Instruction/Data Register selection |
| 19 | LCD_SI / TP_SI | SPI data input of LCD/Touch Panel |
| 21 | TP_SO | SPI data output of Touch Panel |
| 22 | RST | Reset |
| 23 | LCD_SCK / TP_SCK | SPI clock of LCD/Touch Panel |
| 24 | LCD_CS | LCD chip selection, low active |
| 26 | TP_CS | Touch Panel chip selection, low active |
External Dimension
Development Resources
Wiki : www.waveshare.com/wiki/3.5inch_RPi_LCD_(C)
Weight: 0.039 kg
- 3.5inch RPi LCD (C) x1
- Touch pen x1
- RPi screws pack (2pcs) x1
1
2
3
