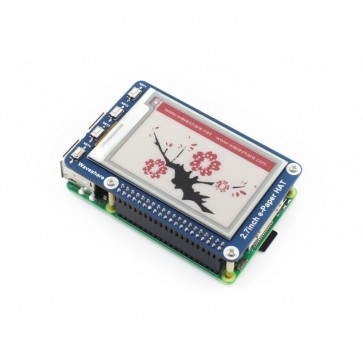

2.7inch E-Ink Display HAT for Raspberry Pi, three-color (264x176)

2.7inch E-Ink Display HAT for Raspberry Pi, three-color (264x176)
Artikelnummer: PI-WAV-13357

Delivery Time: ab Lager

Verfügbarkeit: Sofort-Versand ab Lager

CHF 32.90
  • Kaufen Sie 5 zum Preis von je CHF 28.90 und sparen 13%
  • Kaufen Sie 15 zum Preis von je CHF 26.90 und sparen 19%
Waveshare
Artikelbeschrieb
Details

This is an E-Ink display HAT for Raspberry Pi, 2.7inch, 264x176 resolution, with embedded controller, communicating via SPI interface, supportsred, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Compatible with Raspberry Pi 2B/3B/Zero/Zero W
  • Onboard 4x Keys
  • SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 85mm × 56mm
  • Display size: 57.288mm × 38.192mm
  • Dot pitch: 0.217 × 0.217
  • Resolution: 264 × 176
  • Display color: red, black, white
  • Grey level: 2
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°

Interface

SYMBOLDESCRIPTION
VCC 3.3V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output, low active

Dimensions

2.7inch e-Paper HAT (B) dimensions

Development Resources

Wiki : www.waveshare.com/wiki/2.7inch_e-Paper_HAT_(B)
