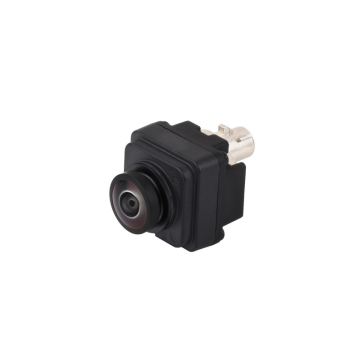

1MP GMSL Camera Module
- Equipped with a 1MP automotive-grade CMOS sensor and MAXIM MAX96701 GMSL serializer for superior image quality.
- Features an IP67-rated case and built-in ISP, ideal for automotive and demanding environments.
Artikelnummer:
13149
Verfügbarkeit: Sofort-Versand ab Lager
CHF 85.80
Artikelbeschrieb
Details
The GMSL-1MP-Camera-A camera module adopts a 1MP automotive-grade CMOS image sensor and integrates the MAXIM MAX96701 GMSL serializer. It includes a professionally calibrated image signal processor (ISP), delivering clear and stable image quality. The entire unit features an IP67-rated case and comes with an AA lens, and each unit is precisely focused and glue-secured before shipment, making it well-suited for automotive and other demanding applications.
Specifications
| Sensor | Model | 1.3MP RGGB | |||
|---|---|---|---|---|---|
| Resolution | 1280 × 960 | ||||
| CMOS Size | 1/3.55inch | ||||
| Pixel Size | 3.0 × 3.0 (um) | ||||
| Camera | FOV | 196°(H) × 151°(V) | |||
| ISP | Built-in | ||||
| Frame Rate | 1280 × 960 at 30fps | ||||
| Output Format | YUV422 at 8bit | ||||
| Serializer | Model | MAXIM MAX96701 | |||
| I2C Address | 0x80 (8-bit address) | ||||
| Camera Interface | TE Fakra (C Code) | ||||
| Operating Voltage | 9 ~ 12V PoC | ||||
| Operating current | < 150mA at 12V | ||||
| Operating Temperature | -40°C ~ 85°C | ||||
| Protection Grade | IP67 | ||||
Package Content
Weight: 0.061 kg
- GMSL-1MP-Camera-A x1
- GMSL camera cable ~2m (coaxial cable with dual female connectors) x1
