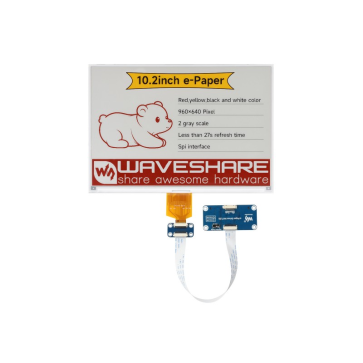

10.2inch e-Paper display (G)
- Experience vibrant Red, Yellow, Black, and White colors on a 10.2-inch e-ink display with a resolution of 960x640, offering a paper-like viewing experience with a wide angle of over 170°.
- Designed for ultra-low power consumption, this display requires power only during refreshing and supports SPI interface, making it compatible with Raspberry Pi, Jetson Nano, Arduino, and STM32.
Artikelnummer:
13050
Verfügbarkeit: Zur Zeit nicht an Lager
CHF 126.50
Artikelbeschrieb
Details
10.2inch e-Paper display (G), e-ink display, 960x640, Red/Yellow/Black/White, SPI Interface
- Size10.2″
- Resolution960×640
- Viewing Angle>170°
- Display ColorRed/Yellow/Black/White
- Grey Scale2
- CommunicationSPI
- Display PanelE-paper
- ExperiencePaper-like
- EnvironmentAmbient Light Required
- Display TypePassively Reflective
Features at a glance
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with online development resources and manual (e-Paper Driver HAT circuit diagram, examples for Raspberry Pi / Jetson Nano / Arduino / STM32)
- Optional for e-Paper Driver HAT:
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano
- Adapting SPI interface for connecting with controller boards like Raspberry Pi / Jetson Nano / Arduino / STM32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
Specifications
| operating voltage | Raw display: 3.3V | display color | Red/Yellow/Black/White |
|---|---|---|---|
| with driver board: 3.3V/5V | |||
| interface | 3-wire SPI, 4-wire SPI | grey scale | 2 |
| outline dimensions | Raw display: 224.00 × 157.00 × 1.00 (mm) | full refresh time | 27s |
| driver board: 65.00 × 30.50 (mm) | |||
| display size | 215.52 × 143.68 (mm) | refresh power | <100mW |
| DOT PITCH | 0.2245 × 0.2245 (mm) | standby current | <0.01uA (almost none) |
| RESOLUTION | 960 × 640 pixels | viewing angle | >170° |
Advantages of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Standard Raspberry Pi 40PIN GPIO header
Compatible with Raspberry Pi series boards and Jetson Nano
- Connecting with Raspberry Pi Zero W
- Connecting with Jetson Nano
Optional for e-Paper Driver HAT
Onboard SPI Control Interface, For Use With Controller Boards Like Arduino / Jetson Nano / STM32 / Raspberry Pi
| VCC | 3.3V/5V |
|---|---|
| GND | Ground |
| DIN | SPI MOSI pin |
| SCLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data / Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output |
| PWR | Power control pin |
Onboard Voltage Translator
Compatible With 3.3V / 5V MCUs
Application examples
Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags..
Package Content
Weight: 1.2 kg
- 10.2inch e-Paper HAT (G) x1
- Screws pack x1
- MX1.25 9PIN cable x1
