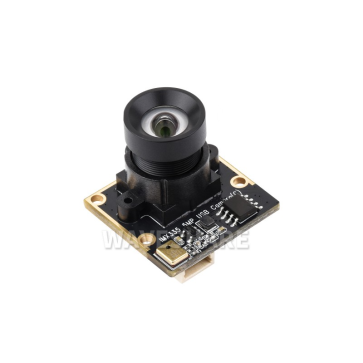

IMX335 5MP USB Camera (C), 2K Video Recording
IMX335 5MP USB Camera (C), 2K Video Recording, Better Sensitivity In Low-Light Condition, Wide Dynamic Range, Distortion-Free
Artikelnummer:
12788
Delivery Time: ab Lager
Verfügbarkeit: Sofort-Versand ab Lager
CHF 35.00
Zubehör
Artikelbeschrieb
Details
5MP USB camera module
IMX335 sensor, USB2.0 port, 91.7° distortion-free lens
Specifications
| Pixels | 5MP | |
|---|---|---|
| Sensor | IMX335 | |
| Interface | USB 2.0 | |
| Camera | Sensor size | 1/2.8 inch |
| Aperture (F) | 2.4 | |
| Focal length (EFL) | 3.25mm | |
| Field of view (FOV) | 91.7° | |
| Distortion | <-1.22% | |
| Focusing | Fixed-focus | |
| Mount | M12 | |
| CONSTRUCTION | 3G2P + IR Filter (650nm) | |
| Image | Format support | MJPG, YVY2 |
| Static image resolution | 2592 × 1944 | |
| Video recording | 30 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720 |
|
| Dynamic range | 71.6dB@8xgain | |
| SNR | 36dB | |
| Audio | onboard 1 × microphone | |
| Operating voltage | 5V ± 5% | |
| operating temperature | -10°C~60°C | |
| Module size | 25.00 × 24.30 (mm) | |
5MP High resolution
Supports 30 FPS output, suitable for capturing details
Better Low-light sensitivity
Provides a better imaging effect in low light condition
Wide Dynamic Range
supports wide dynamic range (WDR) technology for maintaining image details and quality in high contrast scenes
* The above pictures are the simulated effect for demonstrating the expected performance of IMX335 camera under various conditions, for reference only, please refer to actual effect.
Distortion-Free
Equipped with a distortion-free lens with a distortion rate of less than -1.22%, delivering undistorted imaging and more accurate reproduction of real-world scenes
* Note: In the industry, lenses with distortion rate less than 2% are generally considered distortion-free.
Wiki: www.waveshare.com/wiki/IMX335_5MP_USB_Camera_(C)
Package content
Weight: 0.021 kg
IMX335 5MP USB Camera (C) x1
