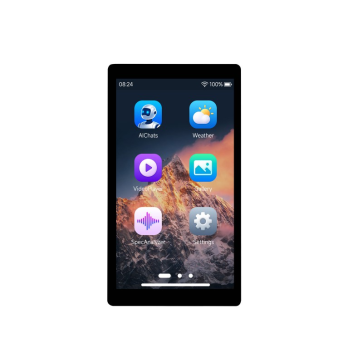

ESP32-P4-WIFI6 5inch Development Board, 720 × 1280 Resolution
- Experience seamless AI interaction and voice control with this high-performance development board featuring a 5-inch capacitive touch display and integrated audio module.
- Equipped with Wi-Fi 6 and Bluetooth 5 capabilities, it supports secure data operations and flexible peripheral configuration for diverse smart device applications.
Artikelnummer:
13100
Verfügbarkeit: Sofort-Versand ab Lager
CHF 58.30
Artikelbeschrieb
Details
5inch LCD High-Performance Development Board Based on ESP32-P4 with integrated audio input/output module for AI interaction and voice control
The display orientation is portrait by default, 720 × 1280 resolution (H × V).
Change the software config for landscape display.
Change the software config for landscape display.
Features
The ESP32-P4-WIFI6-Touch-LCD-5 is a high-performance development board based on ESP32-P4 controller with RISC-V 32-bit dual-core and single-core processors. Equipped with 5inch 720 × 1280 resolution IPS touch display, features rich human-machine interfaces including MIPI-CSI (with integrated Image Signal Processor), it also supports USB OTG 2.0 HS for high-speed connectivity and features an onboard 40PIN GPIO expansion header, compatible with some Raspberry Pi HATs for broader application adaptability.
The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, to meet the higher requirements of embedded applications such as Human-Machine interaction, efficient edge computing, and IO expansion.
- High-performance MCU with RISC-V 32-bit dual-core and single-core processors
- Onboard ESP32-C6-MINI module serving as a Wi-Fi 6 co-processor, extending Wi-Fi 6 and BLE 5 capabilities for ESP32-P4
- 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP Static RAM, 8KB TCM
- Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
- 32MB PSRAM in the chip's package, with onboard 32MB Nor Flash
- Onboard Type-C ports, more convenient, better device compatibility
- Onboard 5inch capacitive touch IPS display for clear color picture display, 720 × 1280 resolution
- Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
- Adapting I2C, UART, USB and multiple GPIOs for external device connection and debugging, enabling flexible peripheral configuration
- Onboard TF card slot for extended storage, high-speed data transfer, and enhanced flexibility, suitable for data logging and media playback, simplifying circuit design
- Onboard camera interface, supporting OV5647 and other MIPI-CSI cameras
- Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation
LCD Specifications
| DISPLAY PANEL | IPS | DISPLAY SIZE | 5inch |
|---|---|---|---|
| Display Resolution | 720 × 1280 resolution | Viewing angle | 178° |
| Brightness | 280cd/㎡ | Contrast Ratio | 900:1 |
| Communication Interface | MIPI-DSI 2-lane | Display Driver | HX8394 |
| Touch Type | Capacitive touch | Touch IC | GT911 |
IPS Display Panel
Excellent Display Performance With 178° Wide Viewing Angle
Capacitive 5-point touch
Suitable for developing various smart devices, enabling human-machine interaction functions
- up to 5-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
5MP OV5647 camera
Onboard MIPI CSI camera interface, optional for OV5647 camera, suitable for image capture, video surveillance, and other applications, meeting diverse requirements
Camera Specifications
| Sensor | OV5647 | CMOS Size | 1/4inch |
| Pixel | 5MP | Aperture | F2.4 |
| Focal Length | 3.07mm | FOV | 72.9° |
| Distortion | < 1.5% | DOF | 20cm ~ ∞ |
| Image | static image resolution: 2592 × 1944 pixel | ||
| Video Recording | 1920 × 1080p at 30 fps, 1280 × 720p at 60 fps 640 × 480p at 60 fps, 640 × 480p at 90 fps |
||
Wi-Fi 6 and Bluetooth module
onboard ESP32-C6-MINI module extends 2.4GHz Wi-Fi 6 and Bluetooth 5 (LE) for ESP32-P4, using SDIO interface protocol for stable connection and efficient transmission
Audio input / output
Onboard ES8311 audio codec chip and ES7210 echo cancellation circuit
for daily audio application scenarios
Supports AI Speech Interaction
Allows access to online large model platforms such as DeepSeek, Doubao, etc.
What's On Board
- ESP32-P4-Core
integrated ESP32-P4NRW32 and 32MB Nor Flash - ESP32-C6-MINI-1 module
SDIO interface protocol, extending Wi-Fi 6 / Bluetooth 5 (LE) - ES7210 echo cancellation chip
Echo cancellation algorithm chip, used to eliminate echo and improve audio capture accuracy - ES8311 low-power audio codec chip
for audio encoding and decoding - MIPI CSI interface
15PIN 1.0mm pitch interface for connecting MIPI-2lane camera - 2.54mm 4PIN pads
for ESP32-C6 module firmware burning - RTC Batt header
for connecting rechargeable RTC Batt (supports rechargeable RTC Batts only) - POWER button
Long press 2s to power off, short press to power on - BOOT button
Press it when powering on or resetting to enter download mode - RESET button
- TF card slot
SDIO 3.0 interface protocol - MIPI DSI LCD interface
for connecting MIPI 2-lane display - Speaker header
GH 1.25 2PIN connector (with lock), supports 8Ω 2W speaker (recommended) - USB TO UART Type-C port
for power supply, programming and debugging - USB OTG Type-C port
USB OTG 2.0 High Speed port - Onboard microphones
dual microphones array input - PWR LED indicator
Power indicator - MX1.25 Lithium Batt header
MX1.25 2PIN connector, for 3.7V Lithium Batt, supports charging and discharging - 40PIN expansion header
2.54mm pitch, compatible with some Raspberry Pi HATs (may require a 2*20pin male-to-male header for connection)
Package Content
Weight: 0.092 kg
- ESP32-P4-WIFI6-Touch-LCD-5 host x1
- GH1.25 2PIN 8Ω 2W speaker 50mm x1
- OV5647 camera x1
