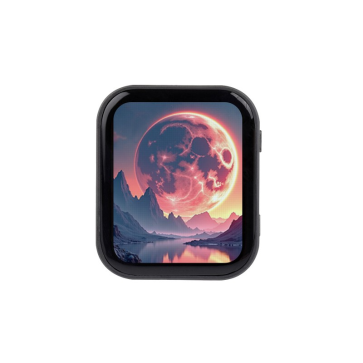

ESP32-C6 1.83inch Touch Display Development Board
- Low-cost, high-performance microcontroller development board
- Equipped with Wi-Fi 6, Bluetooth 5, and 6-axis IMU
Artikelnummer:
12891
Verfügbarkeit: Sofort-Versand ab Lager
CHF 25.30
Artikelbeschrieb
Details
ESP32-C6-Touch-LCD-1.83 is a low-cost, high-performance microcontroller development board designed by Waveshare. Tiny size with onboard 1.83inch capacitive LCD display, Lithium Batt. recharge chip, audio codec IC, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), RTC chip, and so on, specifically designed for the prototype development and function verification of wearable AI voice-interaction agent applications.
Key features include:
- Equipped with a high-performance RISC-V 32-bit processor with up to 160MHz operating frequency and a low-power RISC-V 32-bit processor with up to 20MHz operating frequency
- Integrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
- Onboard 320KB ROM, 512KB HP Static RAM, 16KB LP Static RAM and external 16MB Flash memory
- Type-C port, easier to use
- Onboard 1.83inch capacitive touch display, 240 × 284 resolution, 65K color
- Built-in ST7789P display driver and CST816D capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc
- Onboard PCF85063 RTC chip, powered by Lithium batt. through AXP2101 chip for uninterrupted power supply
- Onboard PWR and BOOT programmable buttons for easy custom function development
- Onboard 3.7V MX1.25 Lithium Batt. recharge/discharge header
- Equipped with dual microphone array with noise reduction and echo cancellation circuit, suitable for near/far-field wake-up
- Onboard ES8311 audio codec chip, microphones, and speaker
- Adapting GPIO, I2C, USB and UART pads for external devices connection and debugging, enabling flexible peripheral configuration
- Supports accurate control such as flexible clock and independent module power setting to realize low power consumption in different scenarios
- High touch screen transmittance, fast response and long lifetime
LCD Specifications
| DISPLAY PANEL | IPS | DISPLAY SIZE | 1.83inch |
|---|---|---|---|
| Resolution | 240 × 284 pixels | Color | 65K |
| Brightness | 300cd/㎡ | Contrast Ratio | 1200:1 |
| Communication Interface | SPI | Display Driver | ST7789P |
| Touch | Support | Touch IC | CST816D |
Tiny size, Touch More Possibilities
Suitable for various smart device development, enabling human-machine interaction function, supports connecting to a Batt. for independent operation
IPS Display Panel
Excellent display performance, wide viewing angle
Onboard audio codec chip
Onboard ES8311 audio codec chip and ES7210 echo cancellation circuit to meet daily audio application scenarios
Supports AI Speech Interaction
Allows access to online large model platforms such as DeepSeek, Doubao, etc
Supports ESP-IDF, Arduino IDE
Comprehensive SDK, dev resources, tutorials to help you easily get startet
Wi-Fi 6 and BLE 5 support
supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread), Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh
What's On Board
- ESP32-C6
The SoC with Wi-Fi and Bluetooth, up to 160MHz operating frequency - AXP2101
Highly integrated power management IC - ES8311
Low-power audio codec IC - ES7210
ADC chip for echo cancellation circuits - MX1.25 speaker header
non-polarized - 1.2mm Lithium Batt. header
1.2mm 2PIN connector, for 3.7V Lithium Batt., supports charging and discharging
(the Batt. with 6 × 25 × 25 mm dimensions is recommended for installation inside the case) - Type-C port
USB port, for program burning and log printing - 16MB NOR-Flash
for storing data
- Onboard dual microphones array
Microphone input and echo cancellation - Onboard antenna
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) - Reserved GPIO pads
Adapting available I/O function pins for easy expansion - TF card slot
- BOOT button
for device startup and functional debugging - PWR button
long press for 6s to shut down, short press to power on, supports custom functions - 1.83inch display panel connector
- QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer - Speaker amplifier chip
- PCF85063
RTC chip
Package Content
-
ESP32-C6-Touch-LCD-1.83 host x1
-
OPTIONAL Lithium Batt. x1
