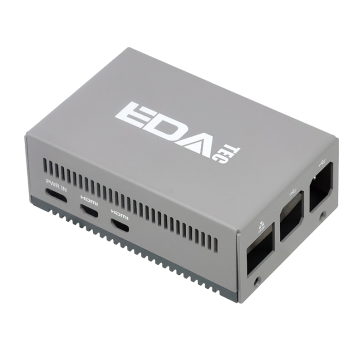

Metal Case for Raspberry Pi 5 + Raspberry Pi M.2 HAT+

In the demanding world of industrial computing, the ED-Pi5Case-EXT offers a robust and efficient solution for housing the Raspberry Pi 5. Designed with durability and performance in mind, this metal case is perfect for industrial applications.

Key Features:

• Robust Construction: Built with sheet metal and aluminum, the ED-Pi5Case-EXT withstands harsh industrial environments.
• Superior Cooling: Passive cooling through thermal pads and a metal body reduces temperatures by up to 20℃, ensuring stable performance.
• Easy Access: All ports, including HDMI, Ethernet, USB, and SD card, are easily accessible, simplifying maintenance and integration.
• Camera Integration: Reserved slots and mounting holes for the Raspberry Pi Camera Module 3 support visual data capture.
• Aesthetic Design: The all-metal casing is both durable and visually appealing, suitable for commercial and industrial settings.
• Simple Installation: Comes with all necessary accessories and clear installation instructions.

Cooling Performance

• Test Device Configuration:
• Raspberry Pi 5 +
• Raspberry Pi AI Kit +
• Raspberry Pi Active Cooler
• Software Configuration:
• CPU 4 cores running at full load via sysbench
• Run stress_test in Hailo Module
• Ambient Temperature: 25℃
• Hailo* 1 Module stable operating temperature (℃):
• 93.1
• 73.3
• Stable running temperature: 65.1

*1: Hailo module is an operation module located on Raspberry Pi AI kit. Test Results: Under the environment of 25℃, when the device is running in a stable state, ED-Pi5Case-EXT can reduce the temperature of Raspberry Pi AI Kit by about 20℃, and also reduce the temperature fluctuation range of Raspberry Pi 5 CPU.

Mechanical Characteristics

• Dimensions: 91mm x 61mm x 33mm
• Material: Sheet Metal (Top Cover) + Aluminium Profile (Bottom Cover)

Packing List

1 x ED-Pi5Case-EXT Top Cover

1 x ED-Pi5Case-EXT Bottom Cover

1 x Accessory Set (With 2 x M2*H8 cylindrical sleeves, 2 x M2*12 screws, 4 x M2.5*21 Screws, 4 x M2.5*4 Screws, 4 x M2.5*H15 cylindrical sleeves and A pair of tweezers
