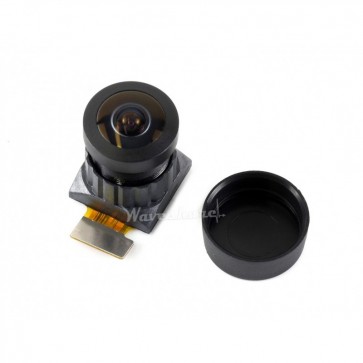

Camera Module, 160 degree FoV

Camera Module, 160 degree FoV
Artikelnummer: 10844

Delivery Time: ab Lager

Verfügbarkeit: Zur Zeit nicht an Lager

CHF 15.90
Waveshare
Artikelbeschrieb
Details

DESCRIPTION

IMX219 Camera Module for the official Raspberry Pi Camera Board V2, 160 degree FoV

Overview

This is a camera module (without driver PCB) compatible with the official Raspberry Pi Camera Board V2, with 8-megapixel IMX219 sensor and features 160 degree field of view.

If you got a Raspberry Pi Camera Board V2 and just want to try something new, here it is.

Features

  • Sony IMX219 8-megapixel sensor
  • Camera specifications
    • CMOS size : 1/4inch
    • Aperture (F) : 2.35
    • Focal Length : 3.15mm
    • Field of View : 160 degree (while the original V2 camera is only 62.2 degree)
    • Distortion: < 14.3%
    • Focusing Range: 20cm ~ infinity
  • 3280 x2464 still picture resolution
  • Support 1080p30, 720p60 and 640x480p90 video record

Dimensions

IMX219-D160 dimensions


Note: this is a raw camera module without driver PCB, the Raspberry Pi and Raspberry Pi Camera Board V2 PCB in the photos are NOT included

  1. IMX219-D160 x1
